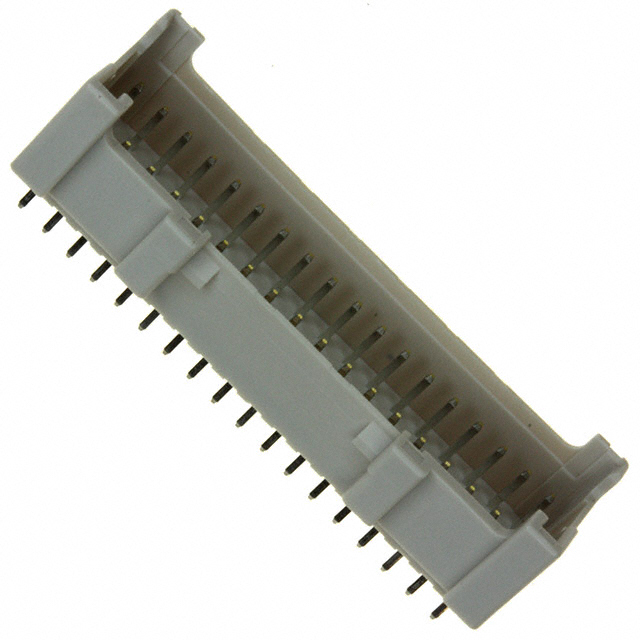

B36B-PNDZS-1

Description：CONN HEADER VERT 36POS 2MM
Series：PND
Mfr：JST Sales America Inc.
Package：Tray

SKU:ca46610659c0 Category: Headers, Male Pins Brand: JST Sales America Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

B36B-PNDZS-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists JST Sales America Inc.. Its product description is CONN HEADER VERT 36POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for B36B-PNDZS-1

Description：CONN HEADER VERT 36POS 2MM
Series：PND
Mfr：JST Sales America Inc.
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：36
Number of Rows：2
Row Spacing - Mating：0.197" (5.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.126" (3.20mm)
Overall Contact Length：-
Insulation Height：0.390" (9.91mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6, Glass Filled
Features：Board Guide
Operating Temperature：-25°C ~ 85°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Ivory
Current Rating (Amps)：3A
Voltage Rating：250V

Headers, Male Pins datasheet and documents for B36B-PNDZS-1

B36B-PNDZS-1

Headers, Male Pins Overview

The B36B-PNDZS-1 is a 36-position rectangular connector header from the JST PND series, designed for through-hole mounting. It features a 2.00mm (0.079 inch) contact pitch and a 5.00mm row spacing across two rows. The housing is constructed from glass-reinforced PA66 nylon with an ivory color finish, rated UL94 V-0 for flammability. Contacts are tin-plated copper alloy pins with a mating length of 3.10mm. The unit supports a maximum current of 3A at 250V, operates within -25°C to 85°C, and includes board guide features for alignment.

Headers, Male Pins Feature Summary

Two-row pin header configuration with board guide integration
Through-hole termination utilizing tin-plated copper alloy contacts
Glass-reinforced PA66 insulation ensuring UL94 V-0 flame retardancy

Headers, Male Pins Applications

Board-to-board interconnections requiring high-density routing
Industrial control systems with standard voltage requirements
Consumer electronics assemblies needing reliable through-hole mounting

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the PND series designation rather than similar PAD or PUD variants. Confirm that the tin plating specification aligns with environmental compliance requirements for the target assembly. Ensure the through-hole footprint on the PCB corresponds to the specified contact dimensions and row spacing to guarantee proper mechanical fit and electrical continuity during soldering processes.

Headers, Male Pins Selection Notes

Select this component when a 36-position connection is required in a compact two-row layout. The PND series offers a balance of density and mechanical stability suitable for general-purpose applications. Consider the 2.00mm pitch for trace routing constraints and verify that the 3A current rating meets the circuit load demands without necessitating higher-rated alternatives.

Headers, Male Pins Part Context

This header belongs to the JST PND series, which provides versatile interconnection solutions for various electronic devices. The series is characterized by its robust construction and standardized dimensions, facilitating easy integration into existing designs. The B36B-PNDZS-1 specifically addresses needs for moderate-to-high pin counts while maintaining a low profile relative to older connector technologies.
