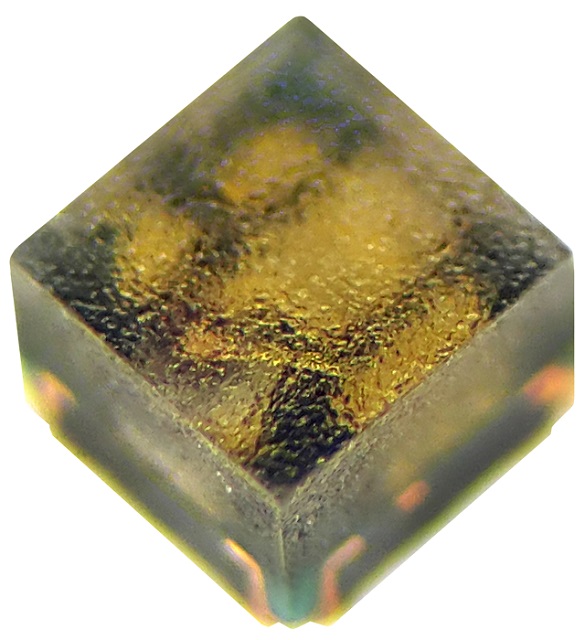

B36H3RGB-F6C0001HOU1930

$0.21

Description：LED RGB CHIP SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:22d479a125c1 Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RGB CHIP SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：-
Lens Transparency：-
Millicandela Rating：32mcd Red, 46mcd Green, 8mcd Blue
Lens Style：Square with Flat Top
Lens Size：0.69mm
Voltage - Forward (Vf) (Typ)：1.9V Red, 2.5V Green, 2.5V Blue
Current - Test：5mA Red, 2mA Green, 2mA Blue
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：621nm Red, 530nm Green, 469nm Blue
Wavelength - Peak：628nm Red, 521nm Green, 465nm Blue
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：Chip LED
Size / Dimension：0.69mm L x 0.69mm W
Height (Max)：0.60mm
Grade：-
Qualification：-

Download product information

B36H3RGB-F6C0001HOU1930

Overview

The B36H3RGB-F6C0001HOU1930 is a surface-mount RGB LED component manufactured by Harvatek Corporation. It features a common cathode configuration within a 4-SMD, no-lead package measuring 0.95mm in length and width with a maximum height of 0.75mm. The device emits red light at a peak wavelength of 630nm (typical forward voltage 1.9V), green light at 521nm (typical forward voltage 2.5V), and blue light at 467nm (typical forward voltage 2.5V). Intensity ratings are 28mcd for red, 37mcd for green, and 7mcd for blue. The component has a viewing angle of 140 degrees and utilizes a square lens with a flat top.

Feature Summary

Integrates red, green, and blue emitters into a single compact surface-mount package
Features a common cathode electrical configuration for simplified circuit design
Utilizes a square lens with a flat top geometry for specific optical distribution

Applications

Fiber optic communication systems
Display technologies
Medical imaging equipment
Industrial automation indicators

Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure correct suffix alignment. Confirm that the specific ordering code matches the required electrical parameters and packaging format. Cross-reference datasheet revisions to validate current production status and compliance certifications before finalizing procurement orders.

Selection Notes

Select this component when a low-profile RGB indicator is required for space-constrained surface-mount applications. Ensure the driving circuitry supports the specified forward voltages for each color channel. Verify that the intensity levels meet the visibility requirements for the intended application environment without necessitating additional amplification.

Part Context

This model belongs to the B36 series of surface mount chip LEDs produced by Harvatek Corporation. The series focuses on providing multi-color illumination solutions in small form factors suitable for modern electronic assemblies. The specific variant integrates distinct spectral outputs within a unified mechanical footprint.
