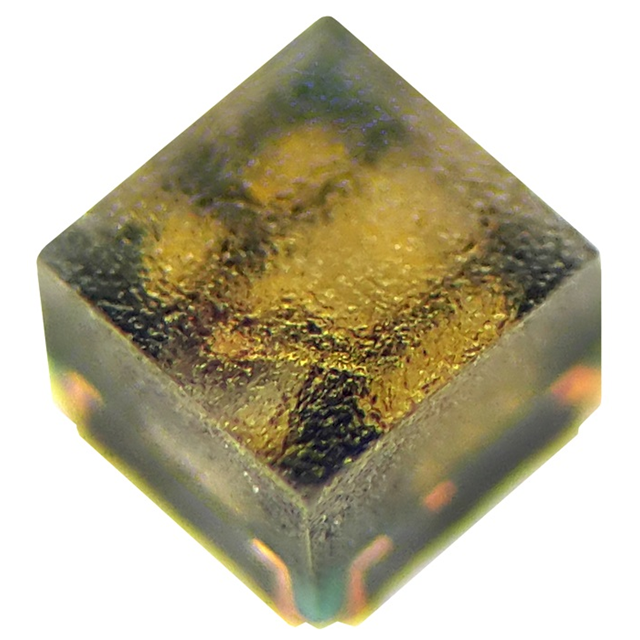

B36J3RGB-F6C0001H4U1930

$0.10

Description：LED RGB CHIP SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:888850931870 Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RGB CHIP SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：-
Lens Transparency：-
Millicandela Rating：32mcd Red, 46mcd Green, 8mcd Blue
Lens Style：Square with Flat Top
Lens Size：0.65mm
Voltage - Forward (Vf) (Typ)：1.9V Red, 2.5V Green, 2.5V Blue
Current - Test：5mA Red, 2mA Green, 2mA Blue
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：621nm Red, 530nm Green, 469nm Blue
Wavelength - Peak：628nm Red, 521nm Green, 465nm Blue
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：Chip LED
Size / Dimension：0.65mm L x 0.65mm W
Height (Max)：0.60mm
Grade：-
Qualification：-

Download product information

B36J3RGB-F6C0001H4U1930

Overview

The B36J3RGB-F6C0001H4U1930 is a surface-mount RGB LED component manufactured by Harvatek Corporation. It integrates red, green, and blue chips within a single package to enable full-color mixing capabilities. The device utilizes a common cathode configuration for simplified circuit design. It features a compact form factor suitable for space-constrained applications. The unit operates with standard forward voltage requirements for each color channel. The lens structure provides a wide viewing angle for effective light distribution.
