B36S3RGB-F6C0001HOU1930

Overview

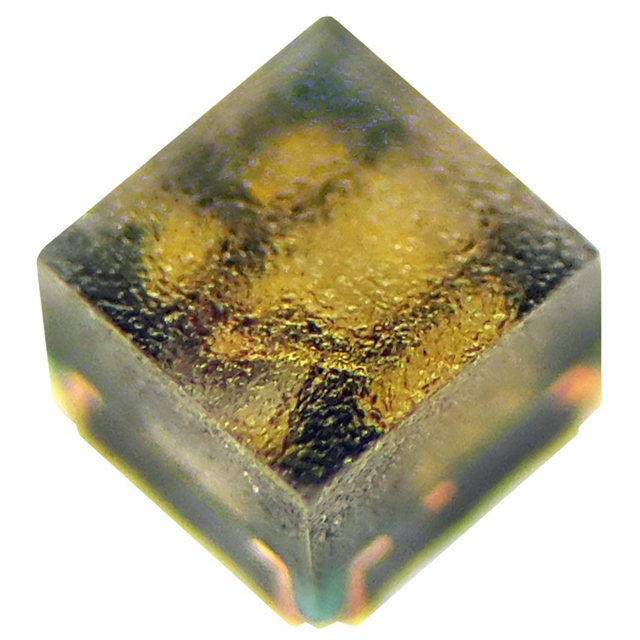

The B36S3RGB-F6C0001HOU1930 is a surface-mount RGB LED component manufactured by Harvatek Corporation. It integrates red, green, and blue chips within a single 4-SMD, no-lead package measuring 0.95mm in length and width, with a maximum height of 0.75mm. The device features a common cathode configuration and utilizes a square lens with a flat top design. Electrical characteristics include forward voltages of 1.9V for the red channel and 2.5V for both green and blue channels. Optical performance specifies peak wavelengths of 630nm (red), 521nm (green), and 467nm (blue), with typical dominant wavelengths at 621nm, 530nm, and 471nm respectively. Luminous intensity values are rated at 28mcd for red, 37mcd for green, and 7mcd for blue, providing a 140-degree viewing angle.

Feature Summary

• Integrates red, green, and blue light-emitting diodes into a unified surface-mount package
• Features a common cathode electrical configuration for simplified circuit control
• Utilizes a square lens structure with a flat top geometry to direct optical output
• Provides a wide 140-degree viewing angle for broad visibility applications

Applications

• LED indicator circuits requiring multi-color status signaling
• Discrete electronic components for compact consumer electronics assemblies
• Surface mount technology (SMT) manufacturing processes for small form-factor devices

Procurement Notes

Verify that the specific part number matches the required electrical parameters, particularly the forward voltage ratings and luminous intensity levels. Confirm compatibility with standard surface-mount reflow soldering profiles. Ensure the common cathode configuration aligns with the intended driver circuit design. Check for RoHS compliance status if environmental regulations apply to the final product assembly.

Selection Notes

Select this component when a compact, multi-color indication solution is required within strict spatial constraints defined by the 0.95mm x 0.95mm footprint. Consider the specific wavelength outputs for color accuracy requirements in display or signaling applications. Evaluate the 140-degree viewing angle against visibility needs. Ensure the driving circuit can accommodate the distinct forward voltage differences between the red and green/blue channels.

Part Context

This component belongs to the family of RGB chip LEDs produced by Harvatek Corporation. It is designed for use as a discrete optoelectronic element in various electronic systems. The manufacturer provides associated documentation including datasheets and EDA models to support integration into printed circuit board layouts. The product is classified under optoelectronics, specifically discrete LED indicators.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
