B3803FCH-20C001112U1930

$0.21

Description：LED RGB CHIP SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b8a5233b43a7 Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RGB CHIP SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Independent
Lens Color：-
Lens Transparency：-
Millicandela Rating：285mcd Red, 900mcd Green, 180mcd Blue
Lens Style：Rectangle with Flat Top
Lens Size：1.60mm x 1.15mm
Voltage - Forward (Vf) (Typ)：2V Red, 3V Green, 3V Blue
Current - Test：20mA Red, 20mA Green, 20mA Blue
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：624nm Red, 525nm Green, 470nm Blue
Wavelength - Peak：632nm Red, 520nm Green, 468nm Blue
Features：-
Package / Case：6-SMD, No Lead
Supplier Device Package：Chip LED
Size / Dimension：1.60mm L x 1.60mm W
Height (Max)：0.40mm
Grade：-
Qualification：-

Download product information

B3803FCH-20C001112U1930

Overview

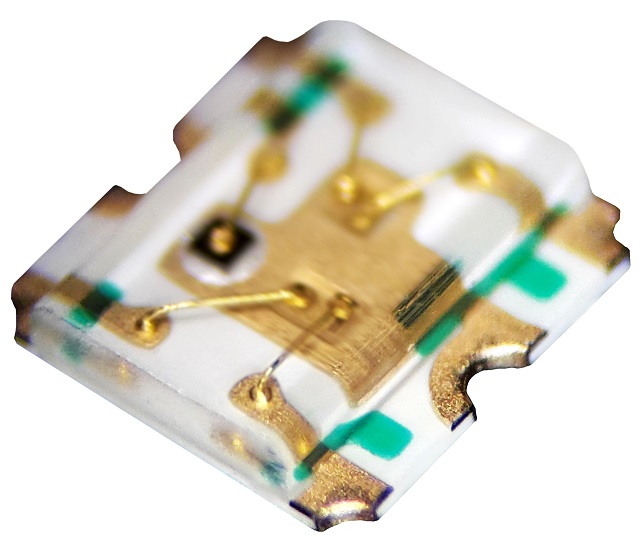

The B3803FCH-20C001112U1930 is a discrete RGB LED indicator manufactured by Harvatek Corporation. It integrates red, green, and blue chips within a single 6-SMD, no-leads package to produce combined color outputs. The device operates with a forward voltage of 2V for the red channel, and 3V for both the green and blue channels. This component is designed for surface-mount assembly, providing a compact solution for multi-color visual signaling applications.

Feature Summary

Integrates red, green, and blue light-emitting diodes into a unified surface-mount package
Provides distinct forward voltage characteristics for individual color channels
Utilizes a leadless SMD form factor for automated board mounting

Applications

Multi-color status indication on electronic equipment panels
Visual signaling in consumer electronics devices
RGB lighting modules requiring compact discrete sources

Procurement Notes

Verify the specific manufacturer part number against official Harvatek documentation to confirm exact binning and wavelength specifications. Ensure compatibility with standard reflow soldering profiles for leadless SMD components. Cross-reference the suffix codes to validate the precise optical and electrical parameters required for your design.

Selection Notes

Select this component when a single footprint is required to generate multiple distinct colors or mixed hues. Consider the 2V and 3V forward voltage requirements for each channel when designing the current-limiting circuitry. The leadless package necessitates appropriate thermal management and solder paste deposition techniques during assembly.

Part Context

This part belongs to Harvatek's range of discrete LED indicators. It differs from other B3803 variants which may be bridge rectifiers or antennas. It is distinct from the T1551DND series, which are white LEDs. The specific alphanumeric suffix defines the unique optical and packaging configuration for this RGB unit.
