B39152B4325P810

Overview

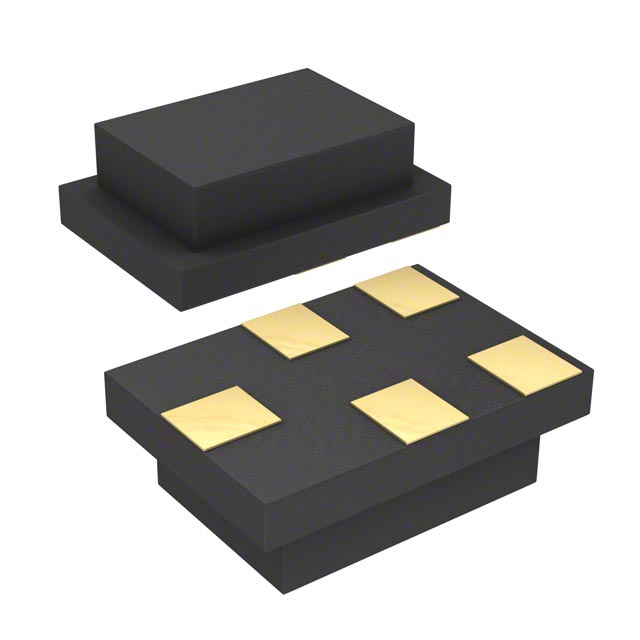

The B39152B4325P810 is a Surface Acoustic Wave (SAW) filter manufactured by Qualcomm. It operates with a center frequency of 1.5dB insertion loss and a bandwidth of 40MHz. The component is housed in a compact 5-SMD, No Lead package designed for surface mount installation. This RF SAW filter is engineered to provide signal filtering capabilities within radio frequency circuits.

Feature Summary

• Utilizes Surface Acoustic Wave technology for RF signal processing
• Designed for surface mount integration into electronic assemblies

Applications

• Radio Frequency applications requiring SAW filtering

Procurement Notes

Verify the current manufacturing status and availability through official Qualcomm channels or authorized distributors before procurement planning. Confirm that the 5-SMD package dimensions and pin configuration match the target design requirements. Ensure compliance with relevant environmental regulations such as RoHS standards applicable to the deployment region.

Selection Notes

Select this component when a 40MHz bandwidth SAW filter with specific insertion loss characteristics is required for RF front-end designs. Consider the 5-SMD package size constraints during layout. Evaluate compatibility with the operating frequency range and ensure the surface mount technology aligns with the assembly process capabilities.

Part Context

This part belongs to the Qualcomm RF front-end filters portfolio, which includes various discrete and embedded filtering solutions. These components support wireless connectivity systems by managing signal integrity. The B39152B4325P810 specifically addresses filtering needs within the broader category of RF SAW devices used in modern communication hardware.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify if alternative SAW filters from the same manufacturer meet the electrical specifications and package requirements.
