B39162B2618P810

Overview

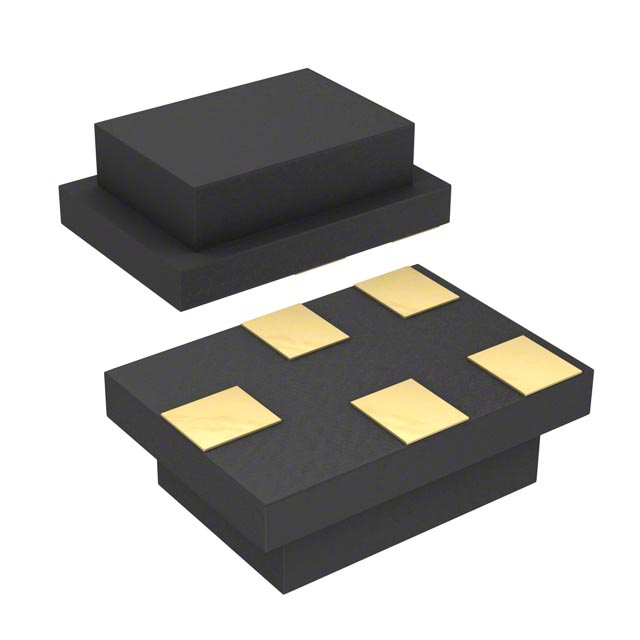

The B39162B2618P810 is a Surface Acoustic Wave (SAW) filter manufactured by Qualcomm, designed for GPS applications. It operates at a center frequency of 1.58247GHz with a bandwidth of 46.8MHz and an insertion loss of 1.4dB. The component features a 5-SMD, no-lead package measuring 1.10mm x 0.90mm in size and 0.45mm in height. It holds AEC-Q200 ratings and complies with RoHS3 standards.

Feature Summary

• Designed for low-loss front-end filtering in GNSS systems
• AEC-Q200 qualified for automotive reliability
• Compact surface-mount footprint for space-constrained designs

Applications

• GPS RF signal processing
• GNSS receiver front-ends
• Automotive navigation systems

Procurement Notes

Verify the specific manufacturer part number against official datasheets to ensure compatibility with target designs. Confirm that the active status aligns with long-term supply requirements. Check for any recent Product Change Notifications regarding manufacturing location or material composition updates before finalizing procurement plans.

Selection Notes

Select this component when a compact SAW filter with specific 1.58247GHz center frequency performance is required. The AEC-Q200 rating makes it suitable for automotive environments. Ensure the 5-SMD package dimensions fit within the available PCB real estate constraints of the intended application design.

Part Context

This component belongs to the Qualcomm RF front-end filter portfolio, utilizing acoustic technologies for wireless connectivity solutions. It supports mobile and IoT applications requiring reliable signal filtering. The product line addresses challenges in multiband and multimode device development while maintaining slim form factors.

Replacement Considerations

No public confirmed substitute part numbers are documented for this specific model.
