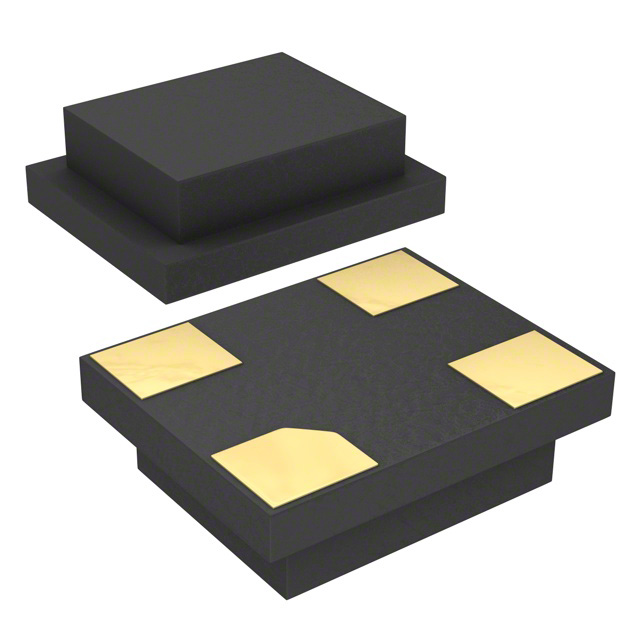

B39162B3401B710

$0.84

Description：FILTER SAW 4SMD
Series：-
Mfr：Qualcomm (RF front-end (RFFE) filters)
Package：Tape & Reel (TR)

SKU:73cf160daa87 Category: SAW Filters Brand: Qualcomm (RF front-end (RFFE) filters)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER SAW 4SMD
Series：-
Mfr：Qualcomm (RF front-end (RFFE) filters)
Package：Tape & Reel (TR)
Frequency - Center：-
Bandwidth：-
Insertion Loss：-
Ratings：-
Applications：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Height (Max)：0.033" (0.86mm)
Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)

Download product information

B39162B3401B710

Overview

The B39162B3401B710 is a Surface Acoustic Wave (SAW) filter manufactured by Qualcomm. It operates at a center frequency of 1.575 GHz with a bandwidth of 4 MHz and an insertion loss of 1.2 dB. The component is housed in a compact 4-SMD, No Lead package measuring 2.00mm x 1.60mm x 0.86mm. Designed for GPS applications, it supports surface mount installation and complies with RoHS3 standards.

Feature Summary

Utilizes Surface Acoustic Wave technology for RF filtering
Optimized for Global Positioning System signal processing
Compact footprint suitable for space-constrained designs

Applications

GPS receiver front-ends
GNSS navigation modules
Location tracking devices

Procurement Notes

Verify the specific suffix to confirm exact electrical characteristics and packaging configuration. Confirm current availability status as components may be subject to discontinuation notices. Ensure compatibility with existing PCB footprints and reflow soldering profiles specified in the official datasheet.

Selection Notes

Select this component when a dedicated SAW filter is required for the L1 GPS band. Consider the 4 MHz bandwidth relative to expected signal requirements. Evaluate the 4-SMD package dimensions against board space constraints compared to alternative packages like 5-SMD options.

Part Context

This part belongs to the B39162 series of RF filters from Qualcomm. These components are engineered for mobile and IoT connectivity, leveraging acoustic technologies to provide high-performance filtering in small form factors for wireless communication systems.

Replacement Considerations

Consult official manufacturer documentation for verified substitute part numbers. Cross-reference pinouts and electrical parameters before implementation.
