B39202B7824A510

Overview

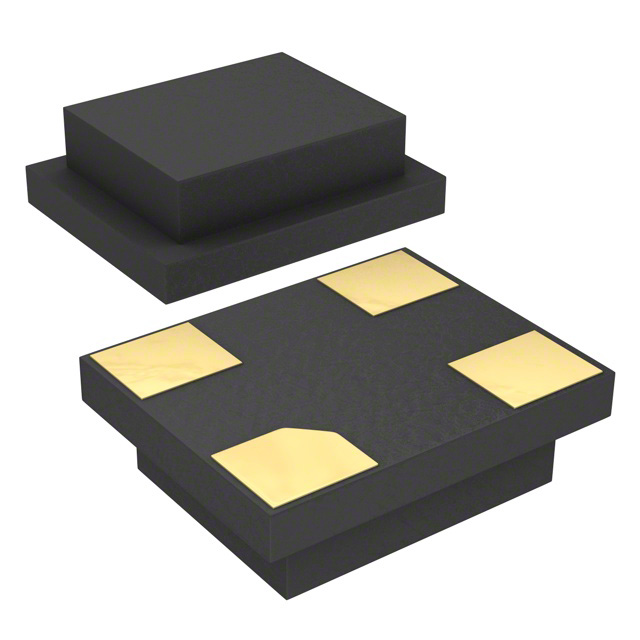

The B39202B7824A510 is a Surface Acoustic Wave (SAW) filter manufactured by Qualcomm. It operates at a center frequency of 1.96 GHz with an insertion loss of 2.7 dB. The component features a maximum height of 0.032 inches (0.80 mm). It utilizes a 4-SMD surface mount package for integration into RF circuits.

Feature Summary

• Utilizes Surface Acoustic Wave technology for signal filtering
• Designed for low-loss performance in RF front-end applications
• Compact surface mount packaging suitable for space-constrained designs

Applications

• Mobile communications systems
• RF front-end modules
• Wireless connectivity devices

Procurement Notes

Verify the manufacturer part number B39202B7824A510 against official Qualcomm documentation to ensure authenticity. Confirm that the device meets required RoHS and REACH compliance standards for your specific region. Check for any Product Change Notifications regarding assembly or material updates before finalizing procurement plans.

Selection Notes

Select this component when a 1.96 GHz SAW filter is required for mobile RF applications. Ensure the design accommodates the 4-SMD footprint and 0.80 mm maximum height. Verify that the 2.7 dB insertion loss aligns with system link budget requirements and that the operating temperature range matches environmental conditions.

Part Context

This component belongs to the Qualcomm RF front-end filter portfolio, which includes various SAW and BAW technologies. These filters are engineered to support 4G and 5G multimode modem-RF systems. The series addresses challenges in multiband and multimode wireless devices, enabling energy-efficient designs in slim form factors for consumer and IoT applications.

Replacement Considerations

Publicly confirmed substitute part numbers for B39202B7824A510 were not identified in available documentation. Consult official Qualcomm resources for potential cross-references or updated components within the same family.
