B39351R802H210

Overview

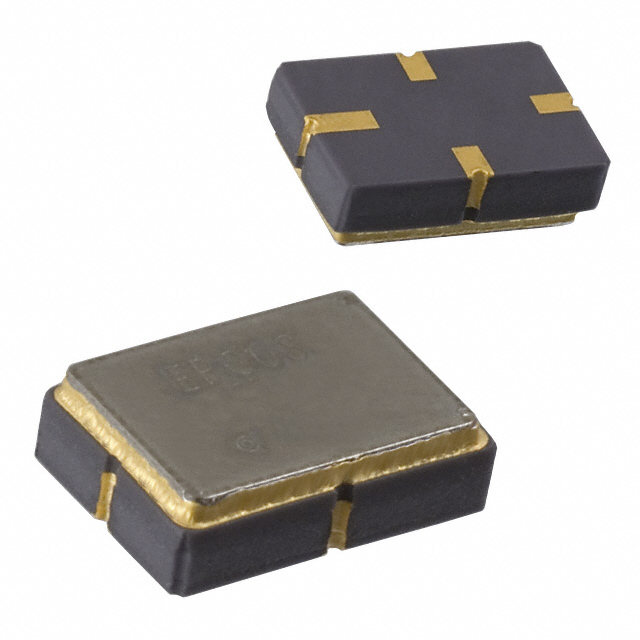

The B39351R802H210 is a Surface Acoustic Wave (SAW) RF filter manufactured by Qualcomm. It operates at a center frequency of 802 MHz with an insertion loss of 1.2 dB and a maximum height of 0.057 inches (1.45 mm). The component utilizes a surface mount package designed for integration into wireless communication systems.

Feature Summary

• Utilizes advanced acoustic filtering technology for signal processing
• Designed for low-loss performance in RF front-end applications
• Supports compact form factor requirements for modern devices

Applications

• Mobile communications systems
• PC connectivity modules
• IoT applications

Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure compatibility. Confirm that the specific suffix matches your design requirements, as ordering suffixes may indicate variations in packaging or testing standards without altering the core electrical function. Cross-reference with current datasheets for any recent product change notices.

Selection Notes

Select this component based on its specific 802 MHz center frequency and 1.2 dB insertion loss characteristics. Ensure the physical dimensions and mounting type align with the PCB layout constraints. Verify that the SAW technology meets the required linearity and power handling specifications for the target application environment.

Part Context

This component belongs to the Qualcomm RF front-end filter portfolio, which includes various discrete and embedded solutions. These filters leverage technologies such as ultraSAW and TC-SAW to address challenges in 5G, 4G, Wi-Fi, and GNSS designs, supporting energy-efficient multimode devices.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
