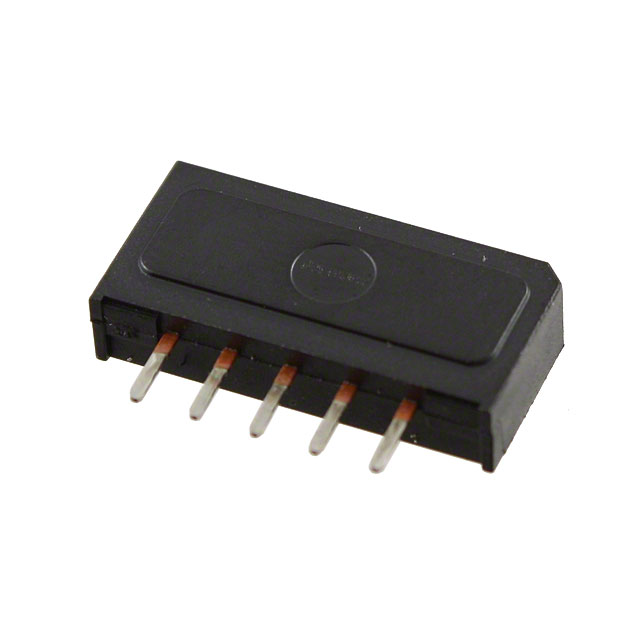

B39361X6966M100

Description：FILTER SAW 36.125MHZ 5SIP
Series：-
Mfr：Qualcomm (RF front-end (RFFE) filters)
Package：Tube

SKU:a228cc251c01 Category: SAW Filters Brand: Qualcomm (RF front-end (RFFE) filters)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER SAW 36.125MHZ 5SIP
Series：-
Mfr：Qualcomm (RF front-end (RFFE) filters)
Package：Tube
Frequency - Center：36.125MHz
Bandwidth：8MHz
Insertion Loss：20.3dB
Ratings：-
Applications：Digital Cable Filter
Mounting Type：Through Hole
Package / Case：5-SIP
Height (Max)：0.343" (8.70mm)
Size / Dimension：0.681" L x 0.154" W (17.30mm x 3.90mm)

Download product information

B39361X6966M100

Overview

The B39361X6966M100 is a Surface Acoustic Wave (SAW) filter manufactured by Qualcomm. It operates at a center frequency of 36.125 MHz and features a 5-SIP package. This component is designed for RF filtering applications, specifically supporting Digital Audio Broadcasting (DAB) systems. The device utilizes advanced acoustic technology to provide signal selection within the specified bandwidth.

Feature Summary

Utilizes Surface Acoustic Wave (SAW) technology for RF signal processing
Engineered for Digital Audio Broadcasting (DAB) applications
Designed with a 5-SIP surface mount package

Applications

Digital Audio Broadcasting (DAB) receivers
RF front-end signal filtering
Broadcast audio equipment

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and check for specific packaging variations. Ensure compatibility with existing PCB layouts and soldering profiles before integration into production lines.

Selection Notes

Select this component for designs requiring precise filtering at 36.125 MHz. Evaluate insertion loss and bandwidth specifications against system requirements. Consider the 5-SIP package dimensions for space-constrained layouts. Verify thermal management needs and operating temperature ranges for the target environment.

Part Context

This part belongs to Qualcomm's RF front-end filter portfolio, which includes various SAW and BAW technologies. These components are engineered to address challenges in mobile communications, infrastructure, and IoT devices. The series supports multiband and multimode wireless connectivity solutions.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official Qualcomm resources or authorized distributors for current obsolescence notices and recommended alternative components.
