B39588N3958M100

Overview

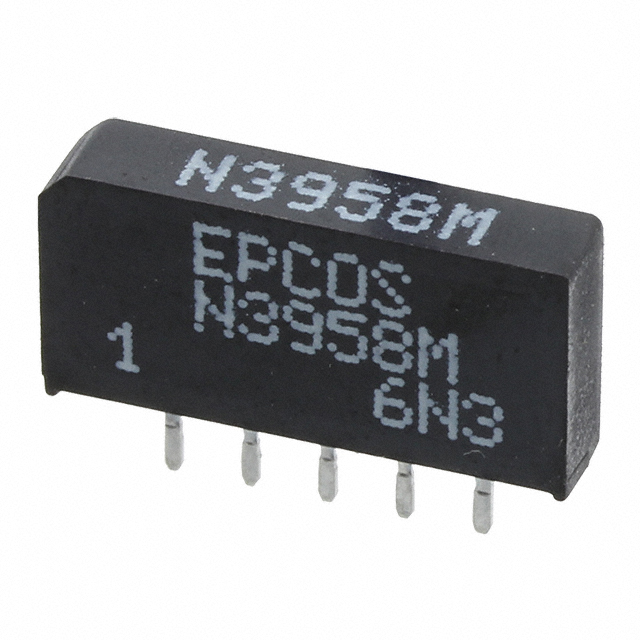

The B39588N3958M100 is a Surface Acoustic Wave (SAW) filter manufactured by Qualcomm. It operates at a center frequency of 58.75MHz and utilizes a 5-SIP package for through-hole mounting. This component is designed for RF filtering applications, providing signal selection capabilities within electronic circuits.

Feature Summary

• Utilizes Surface Acoustic Wave (SAW) technology for RF filtering
• Designed for specific frequency band selection
• Constructed in a 5-SIP package configuration

Applications

• RF signal processing circuits
• Television receiver front-ends
• General purpose radio frequency filtering

Procurement Notes

Verify the exact manufacturer designation as sources attribute this part to Qualcomm RFFE filters while DigiKey listings may show different branding. Confirm the package type matches system requirements, as some distributors list similar models with surface mount options. Check current availability status as components in this category are frequently subject to lifecycle changes.

Selection Notes

Select this component when a discrete SAW filter is required for the 58.75MHz frequency range. Ensure the circuit design accommodates the 5-SIP through-hole mounting style. Compare insertion loss and bandwidth specifications against other available SAW filters if precise attenuation characteristics are critical for the application.

Part Context

This part belongs to the Qualcomm RF front-end filter portfolio, which includes various acoustic technologies. While often associated with mobile platforms, specific discrete SAW models like this one serve broader RF applications requiring stable frequency filtering in consumer electronics and broadcast equipment.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing board layouts before considering alternative discrete SAW filters from other manufacturers.
