B39662B8385L210

Overview

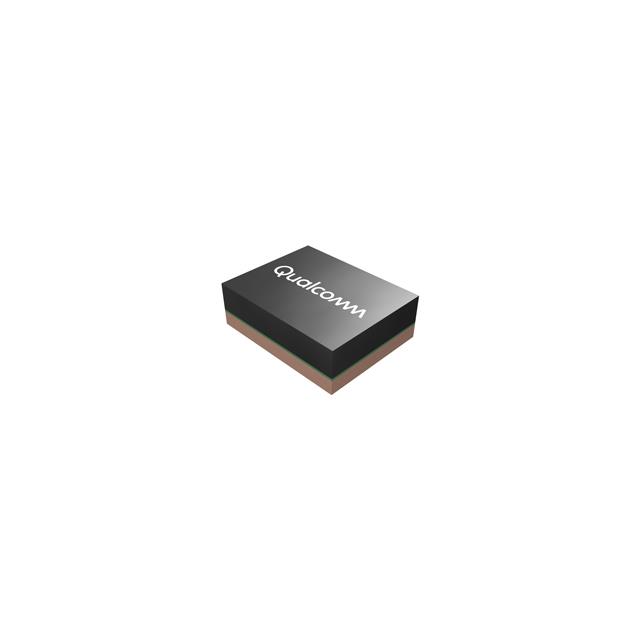

The B39662B8385L210 is an RF filter manufactured by Qualcomm (RF front-end (RFFE) filters). It operates with a center frequency of 6.615GHz and features a bandwidth of 1.02GHz. The component exhibits an insertion loss of 3.5dB. It is housed in an 8-SMD, No Lead package designed for surface mount applications.

Feature Summary

• Designed as an RF filter for radio frequency signal processing
• Utilizes surface mount technology for PCB integration

Applications

• Radio Frequency systems

Procurement Notes

Verify the manufacturer designation as Qualcomm (RF front-end (RFFE) filters) against official documentation. Confirm the part number B39662B8385L210 matches the required specifications. Ensure compatibility with the 8-SMD, No Lead package type. Check for RoHS3 compliance status if required by project standards. Validate the center frequency and bandwidth parameters against system requirements before procurement.

Selection Notes

Select this component based on its specific 6.615GHz center frequency and 1.02GHz bandwidth capabilities. Consider the 3.5dB insertion loss when designing the RF chain. The 8-SMD, No Lead package requires appropriate surface mount assembly processes. Ensure the design accommodates the physical dimensions and thermal characteristics associated with this package style.

Part Context

This component belongs to the RF filter category within the Qualcomm (RF front-end (RFFE) filters) portfolio. It is engineered for radio frequency applications requiring specific filtering characteristics. The device supports surface mount integration into electronic circuits.

Replacement Considerations

No public confirmed substitute part numbers are available for this component.
