Product Detailed Parameters
- Description：LED RGB CHIP SMD
- Series：-
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：26mcd Red, 37mcd Green, 7.5mcd Blue
- Lens Style：Square with Flat Top
- Lens Size：0.80mm
- Voltage - Forward (Vf) (Typ)：1.9V Red, 2.5V Green, 2.5V Blue
- Current - Test：-
- Viewing Angle：140°
- Mounting Type：Surface Mount
- Wavelength - Dominant：621nm Red, 530nm Green, 471nm Blue
- Wavelength - Peak：630nm Red, 521nm Green, 467nm Blue
- Features：-
- Package / Case：4-SMD, No Lead
- Supplier Device Package：Chip LED
- Size / Dimension：0.80mm L x 0.80mm W
- Height (Max)：0.75mm
- Grade：-
- Qualification：-
Download product information
Overview

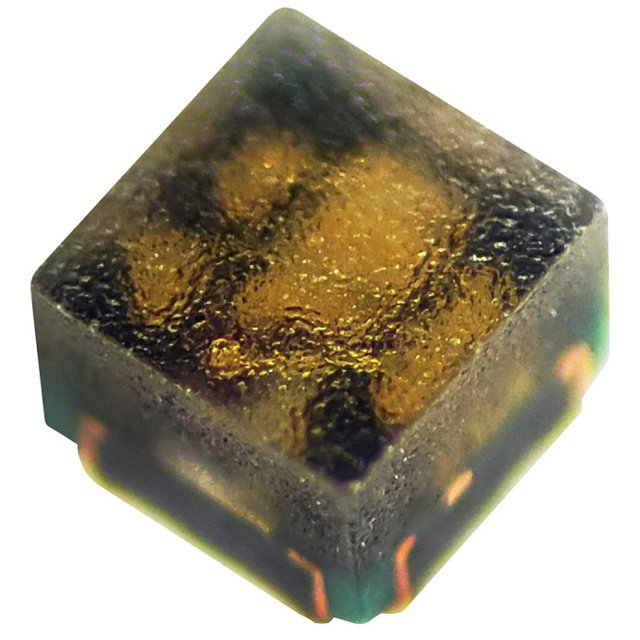

The B39P3RGB-F6C0001HOU1930 is a surface-mount RGB LED indicator manufactured by Harvatek Corporation. It features a common anode configuration within a 4-SMD, no-lead package measuring 0.80mm in length and width, with a maximum height of 0.75mm. The component emits red light at a peak wavelength of 630nm (typical 621nm) with a forward voltage of 1.9V and intensity of 26mcd. Green emission peaks at 521nm (typical 530nm), operating at 2.5V forward voltage with 37mcd intensity. Blue light peaks at 467nm (typical 471nm), also at 2.5V forward voltage, delivering 7.5mcd. The device offers a 140-degree viewing angle and utilizes a square lens with a flat top.
Feature Summary
- Integrates red, green, and blue emitters into a single compact surface-mount package for color mixing applications
- Features a common anode electrical configuration to simplify circuit design and control logic
- Utilizes a square lens with a flat top design to provide a consistent 140-degree viewing angle
Applications
- Status indication in consumer electronic devices requiring multi-color signaling
- Backlighting solutions for portable electronics and handheld interfaces
- Decorative lighting elements in smart home appliances and IoT devices
Procurement Notes
Verify the specific suffix HOU1930 against the manufacturer's official datasheet to confirm exact binning and optical characteristics. Ensure compatibility with RoHS compliance standards and MSL level 2A moisture sensitivity requirements during storage and handling. Confirm that the 4-SMD no-lead package dimensions align with the designated PCB footprint and soldering profile specifications.
Selection Notes
Select this component when a low-profile RGB solution is required for space-constrained designs. The common anode structure reduces pin count compared to common cathode alternatives. Consider the distinct forward voltages between the red channel and the green/blue channels when designing current-limiting resistor networks or driver circuits to ensure balanced brightness and proper operation.
Part Context
This part belongs to the Harvatek Corporation discrete LED indicator series, specifically designed for surface-mount technology assembly. It represents a standard offering for multi-color visual feedback in modern electronics, utilizing established semiconductor materials for red, green, and blue wavelengths within a standardized 0805-equivalent footprint.
Replacement Considerations
Consult the official Harvatek cross-reference documentation for verified substitutes. Generic RGB LEDs may differ in luminous intensity, viewing angle, or forward voltage characteristics. Verify package dimensions and pinout configurations before substituting to maintain mechanical and electrical integrity.
