Product Detailed Parameters

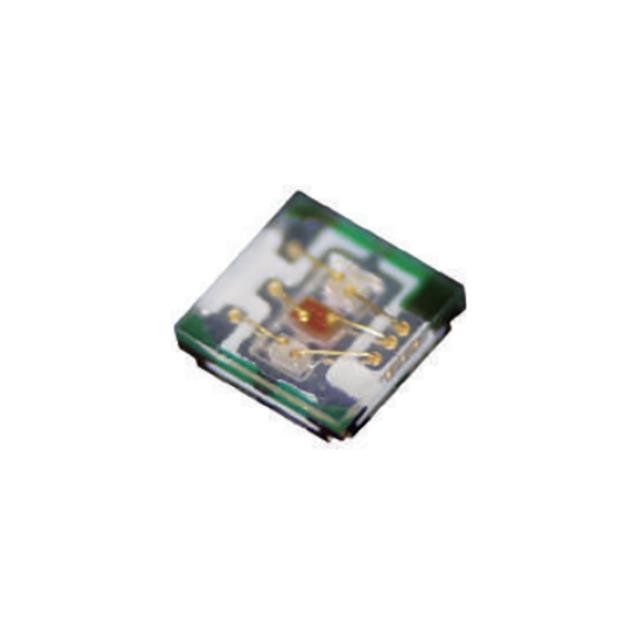

- Description：LED RGB CHIP SMD
- Series：-
- Mfr：Harvatek Corporation
- Package：Strip
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：225mcd
- Lens Style：Square with Flat Top
- Lens Size：1.08mm
- Voltage - Forward (Vf) (Typ)：1.8V Red, 2.6V Green, 2.6V Blue
- Current - Test：2mA Red, 2mA Green, 2mA Blue
- Viewing Angle：-
- Mounting Type：Surface Mount
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：-
- Supplier Device Package：Chip LED
- Size / Dimension：1.08mm L x 1.08mm W
- Height (Max)：0.35mm
- Grade：-
- Qualification：-
Download product information
Overview
The B3C73RBG02D0006H4U1930 is a Red, Green, Blue (RGB) discrete LED indicator manufactured by Harvatek Corporation. It features a common anode configuration within a compact SMD package. The component operates with forward voltages of 1.8V for the red channel and 2.6V for both green and blue channels. It utilizes a chip-style surface mount design suitable for automated assembly processes in electronic devices requiring multi-color status indication.
Feature Summary
- Independent RGB color mixing capability for diverse visual signaling
- Common anode electrical configuration simplifies circuit driving requirements
- Compact surface-mount form factor enables dense PCB layout integration
Applications
- Electronic device status indicators
- Multi-color signal lighting systems
- Consumer electronics front panels
Procurement Notes
Verify the complete part number including all suffix characters against official manufacturer documentation to ensure exact specification matching. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement. Ensure storage conditions align with humidity protection standards specified in the datasheet to maintain component reliability during handling and assembly.
Selection Notes
Select this component when a low-profile RGB indicator is required for space-constrained designs. The specific forward voltage characteristics must match the available drive voltage levels in the target system. Consider the common anode topology for compatibility with existing control logic. Evaluate thermal management needs based on the intended duty cycle and ambient operating conditions.
Part Context
This component belongs to the Harvatek Corporation discrete LED indicator series. It represents a standard solution for applications requiring distinct red, green, and blue light emission from a single package. The product line focuses on providing reliable optical performance in a small footprint, catering to modern electronics manufacturing trends toward miniaturization and integrated signaling solutions.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and forward voltage tolerances if considering alternative RGB LEDs from other manufacturers. Ensure mechanical dimensions and soldering profiles match the original design specifications.
