Product Detailed Parameters

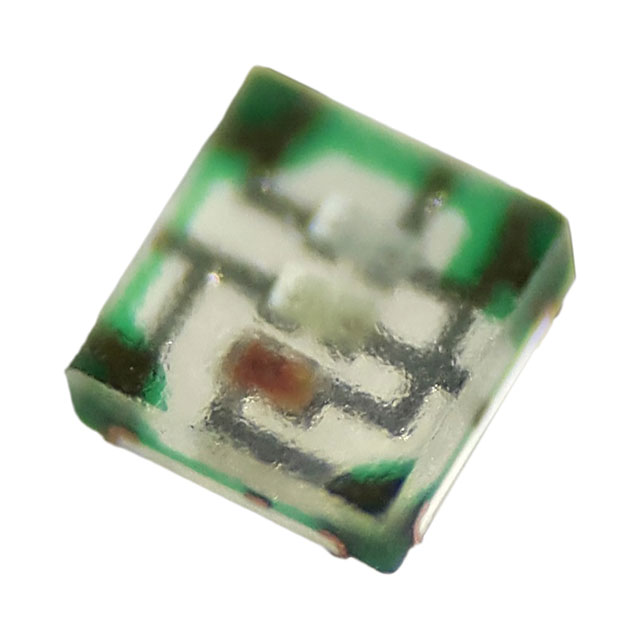

- Description：LED RGB DIFFUSED SMD
- Series：B3C93RBG-02
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：-
- Lens Transparency：Diffused
- Millicandela Rating：65mcd Red, 180mcd Green, 35mcd Blue
- Lens Style：Square
- Lens Size：0.95mm
- Voltage - Forward (Vf) (Typ)：1.6V Red, 2.4V Green, 2.4V Blue
- Current - Test：2mA Red, 2mA Green, 2mA Blue
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：622nm Red, 528nm Green, 469nm Blue
- Wavelength - Peak：631nm Red, 521nm Green, 463nm Blue
- Features：-
- Package / Case：4-SMD, No Lead
- Supplier Device Package：Chip LED
- Size / Dimension：0.95mm L x 0.95mm W
- Height (Max)：0.35mm
- Grade：-
- Qualification：-
Download product information
Overview
The B3C93RBG-02DZH4001U1930 is a surface-mount RGB LED from Harvatek Corporation. It features red (622nm), green (528nm), and blue (469nm) wavelengths with diffused lens styling. The component measures 1.6mm in length, 0.8mm in width, and 0.4mm in height. It utilizes a common anode configuration within a 1645 package format.
Feature Summary
- Diffused light output for uniform illumination
- Common anode electrical configuration
- Compact surface-mount footprint
Applications
- LED indication
- Discrete lighting components
- Electronic device status signaling
Procurement Notes
Verify the specific suffix against official datasheets to confirm exact optical and electrical characteristics. Ensure compatibility with standard reflow soldering profiles for SMD components. Confirm RoHS compliance status through manufacturer documentation prior to integration into final assemblies.
Selection Notes
Select this component for applications requiring compact RGB indicators with diffused light distribution. The common anode design simplifies circuit driving requirements compared to common cathode alternatives. Evaluate spatial constraints against the 1.6x0.8mm package dimensions during PCB layout planning.
Part Context
This part belongs to Harvatek's discrete LED indicator series. It provides multi-color capability in a small form factor suitable for modern electronics. The product line focuses on reliable surface-mount solutions for various industrial and consumer applications.
Replacement Considerations
Cross-reference with other Harvatek RGB SMD LEDs sharing the 1645 package and common anode configuration. Verify wavelength and forward voltage specifications match before substitution.
