Product Detailed Parameters
- Description：LED RGB CHIP SMD
- Series：-
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：28mcd Red, 37mcd Green, 7mcd Blue
- Lens Style：Square with Flat Top
- Lens Size：0.95mm
- Voltage - Forward (Vf) (Typ)：1.9V Red, 2.5V Green, 2.5V Blue
- Current - Test：-
- Viewing Angle：140°
- Mounting Type：Surface Mount
- Wavelength - Dominant：621nm Red, 530nm Green, 471nm Blue
- Wavelength - Peak：630nm Red, 521nm Green, 467nm Blue
- Features：-
- Package / Case：4-SMD, No Lead
- Supplier Device Package：Chip LED
- Size / Dimension：0.95mm L x 0.95mm W
- Height (Max)：0.75mm
- Grade：-
- Qualification：-
Download product information
Overview

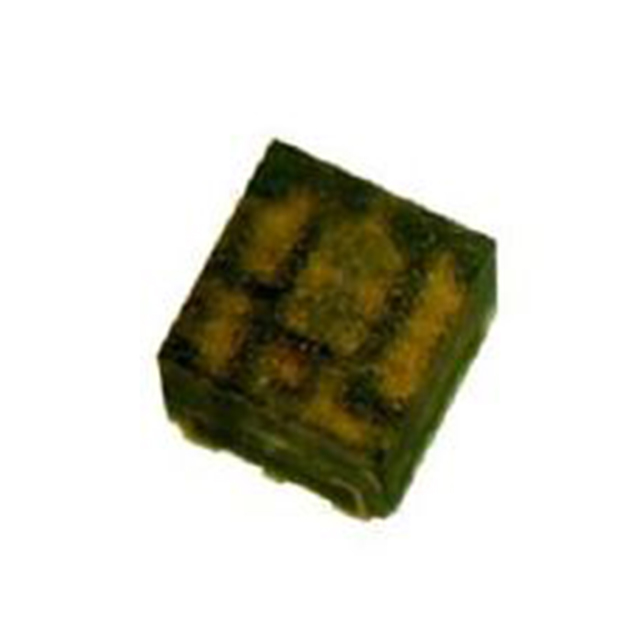

The B3SD3RGB-F6C0001HOU1930 is a surface-mount RGB LED component manufactured by Harvatek Corporation. It features a common anode configuration within a 4-SMD, no-lead package measuring 0.95mm in length and width, with a maximum height of 0.75mm. The device emits red light at a peak wavelength of 621nm (typical forward voltage 1.9V), green light at 530nm (typical forward voltage 2.5V), and blue light at 471nm (typical forward voltage 2.5V). Luminous intensity values are specified as 28mcd for red, 37mcd for green, and 7mcd for blue.
Feature Summary
- Integrates red, green, and blue chips into a single compact surface-mount package for efficient color mixing.
- Utilizes a square lens with a flat top design to direct optical output.
- Supports standard surface mount assembly processes via a leadless SMD footprint.
Applications
- Fiber optic communication systems
- Display technologies
- Medical imaging equipment
- Industrial automation indicators
Procurement Notes
Verify the specific suffix HOU1930 against official datasheets to confirm pinout and electrical characteristics. Note that this part number may be subject to discontinuation or limited availability; consult manufacturer announcements for current production status before finalizing procurement plans.
Selection Notes
Select this component when a low-profile RGB indicator is required for space-constrained designs. Ensure circuit design accounts for the distinct forward voltages of the red and green/blue channels. Verify compatibility with the target application's thermal management requirements given the small package size.
Part Context
This component belongs to the Harvatek Corporation discrete LED product line, specifically designed for high-density electronic assemblies. It serves as a compact solution for multi-color signaling and display applications where board real estate is limited.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other 0905-sized RGB LEDs only if electrical parameters and pin configurations are verified to match exactly.
