B3SK3RGB-F6C0001HOU1930

Overview

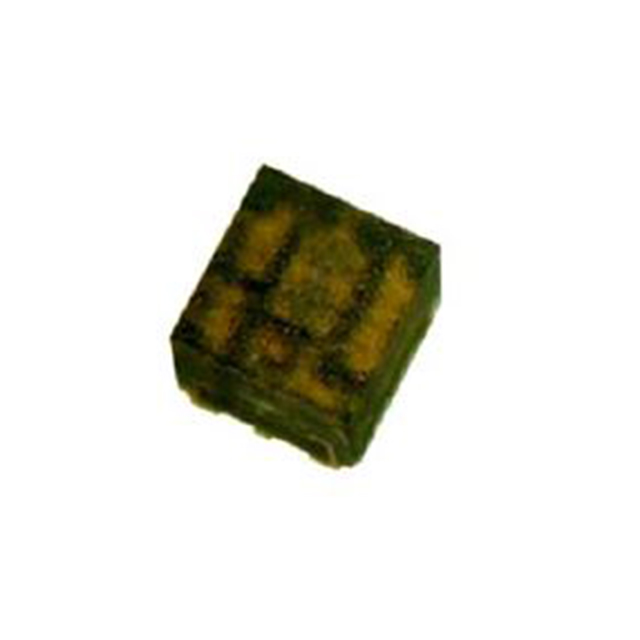

The B3SK3RGB-F6C0001HOU1930 is a surface-mount RGB LED component manufactured by Harvatek Corporation. It features a common cathode configuration within a 4-SMD, no-lead package measuring 0.95mm x 0.95mm with a maximum height of 0.75mm. The device emits red light at a peak wavelength of 630nm (typical forward voltage 1.9V), green light at 521nm (typical forward voltage 2.5V), and blue light at 467nm (typical forward voltage 2.5V). Luminous intensity ratings are 28mcd for red, 37mcd for green, and 7mcd for blue. The unit offers a wide viewing angle of 140 degrees and utilizes a square lens with a flat top design.

Feature Summary

• Integrates red, green, and blue emitters in a single compact surface-mount package
• Features a wide 140-degree viewing angle for broad visibility
• Utilizes a square lens with a flat top design for uniform light distribution
• Supports mixed-color generation through independent channel control

Applications

• Status indication in electronic devices
• Backlighting for small displays or keypads
• Decorative lighting modules
• Signal indicators in consumer electronics

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required packaging formats such as tape and reel or cut tape. Confirm that the moisture sensitivity level classification aligns with your facility's floor life management protocols. Ensure that the soldering profile matches the thermal characteristics defined in the manufacturer's datasheet to prevent component damage during assembly processes.

Selection Notes

Select this component when a low-profile RGB solution is required for space-constrained designs. The common cathode architecture simplifies circuit layout by sharing a ground connection across all three color channels. Consider the specific luminous intensity requirements for each primary color to determine if additional optical lenses or diffusers are necessary to achieve the desired visual output in the final application.

Part Context

This part belongs to the family of discrete indicator LEDs produced by Harvatek Corporation. It is designed for surface-mount technology (SMT) assembly lines. The component complies with RoHS standards and is classified under ECCN EAR99. It is distinct from single-color SMD LEDs due to its multi-chip integration capability within a unified footprint.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify pinout compatibility and thermal resistance values before considering any alternative components from other manufacturers.
