Product Detailed Parameters
- Description：DIODE SCHOTTKY 40V 5A SMC
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io)：5A
- Voltage - Forward (Vf) (Max) @ If：550 mV @ 5 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：500 µA @ 40 V
- Capacitance @ Vr, F：300pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：DO-214AB, SMC
- Supplier Device Package：SMC
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Download product information
Overview

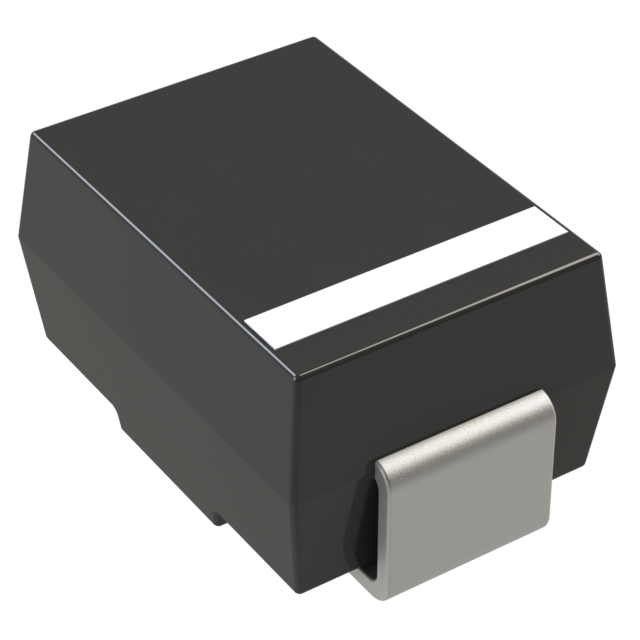

The B540C-13-F is a surface-mount Schottky barrier rectifier diode manufactured by Diodes Incorporated. It features a single-element silicon construction in the DO-214AB (SMC) package with two pins. Key electrical parameters include a maximum repetitive peak reverse voltage of 40V and a maximum continuous forward current of 5A. The device exhibits a maximum forward voltage drop of 550mV at rated current and supports a peak non-repetitive forward surge current of 100A. It operates within a temperature range of -55°C to +125°C.
Feature Summary
- Guard ring die construction provides transient protection capabilities
- Low power loss design ensures high efficiency performance
- Qualified to AEC-Q101 standards for automotive reliability
Applications
- Low voltage, high frequency inverters
- Free wheeling circuits
- Polarity protection applications
Procurement Notes
Verify the specific suffix '13-F' against official Diodes Incorporated documentation to confirm tape-and-reel packaging and halogen-free status. Ensure the component meets RoHS compliance requirements for your assembly process. Cross-reference the DO-214AB footprint dimensions with your PCB layout specifications before finalizing procurement decisions.
Selection Notes
Select this component when a 40V blocking capability and 5A continuous current rating are required in a compact SMC package. The low forward voltage drop makes it suitable for improving system efficiency in low-voltage DC-DC converters. Verify that the thermal management strategy accommodates the specified junction temperature limits during operation.
Part Context
This part belongs to the B540C series of surface mount Schottky rectifiers from Diodes Incorporated. The series offers various voltage ratings while maintaining consistent current handling and package form factors. These devices are designed for automated assembly processes and are commonly used in consumer electronics and industrial power supplies requiring reliable rectification.
Replacement Considerations
Direct substitutes include other 40V 5A Schottky diodes in the DO-214AB package such as the B540C-13 or equivalent parts from other manufacturers like Microsemi. Ensure pinout compatibility and thermal characteristics match the original design requirements before substitution.
