Product Detailed Parameters
- Description：3+3 POS. FEMALE DIL VERTICAL THR
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：6
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：2.2A
- Voltage Rating：800VAC/DC
Download product information
Overview

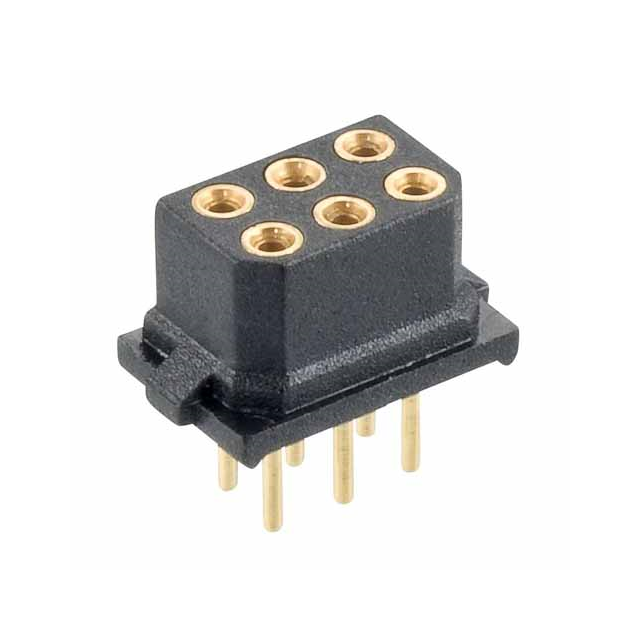

The B5741-206-F-T-2 is a Datamate L-Tek series receptacle connector manufactured by Harwin Inc. It features a dual-row configuration with six female sockets and a 2.00mm (0.079 inch) pin spacing. Designed for through-hole termination, the unit utilizes gold-plated contacts to ensure reliable signal transmission. The housing accommodates wire gauges ranging from 28 AWG to 24 AWG, supporting standard industrial interconnect requirements.
Feature Summary
- Dual-row female socket architecture for compact circuit integration
- Through-hole mounting style for secure PCB attachment
- Gold-plated contact surfaces for corrosion resistance
- Compatible with 28 to 24 AWG discrete wiring
Applications
- Industrial control panel interconnections
- Medical equipment signal routing
- Metering and measurement device interfaces
- Aviation subsystem cabling
Procurement Notes
Verify that the specific suffix matches the required large bore contact specification. Confirm RoHS compliance status against current regulatory updates. Ensure the through-hole footprint aligns with the target PCB design. Check for any recent product change notices affecting material composition or packaging standards before finalizing orders.
Selection Notes
Select this component when a low-profile, dual-row female header is required for through-hole assembly. The 2.00mm pitch allows for dense circuit layouts while maintaining adequate spacing. Ensure mating connectors belong to the same Datamate L-Tek family to guarantee mechanical fit and electrical continuity without adapter requirements.
Part Context
This part belongs to the Datamate L-Tek family, which provides robust interconnect solutions for harsh environments. The series is engineered for high reliability in sectors such as defense, aerospace, and medical devices. The specific model offers a balance of durability and compact form factor suitable for space-constrained electronic assemblies.
Replacement Considerations
M80-8882001 serves as a parameter-equivalent alternative within the Harwin portfolio. Verify mechanical compatibility and pin count alignment before substitution. Cross-reference datasheets to confirm identical termination styles and housing dimensions.
