B5741-208-F-T-2

Overview

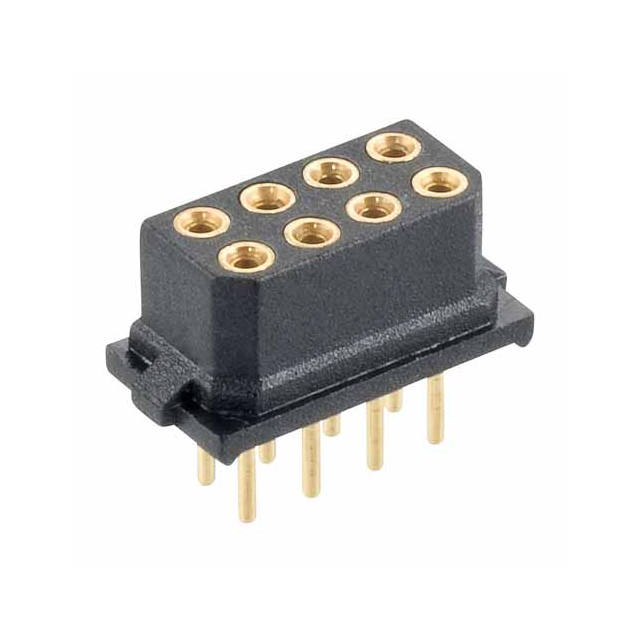

The B5741-208-F-T-2 is a Datamate L-Tek series female receptacle connector manufactured by Harwin Inc. It features an 8-position (4+4) dual in-line configuration with a 2.00mm pitch. Designed for discrete wire applications, it utilizes crimp termination compatible with 24-28 AWG cables. The contacts are gold-plated to ensure reliable signal transmission. This free-hanging housing is intended for cable assembly integration.

Feature Summary

• Dual row female socket design for compact wiring layouts
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Crimp termination method supporting standard wire gauges

Applications

• Custom cable assemblies requiring secure female connections
• Industrial control panel wiring harnesses
• Electronic equipment internal interconnects

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS3 compliance status prior to procurement. Check for product discontinuation notices as this item may be obsolete. Ensure compatibility with mating male headers from the same Datamate family. Review technical datasheets for specific handling and storage requirements.

Selection Notes

Select this connector when a dual-row female interface is required for 24-28 AWG wires. Ensure the mating part matches the 2.00mm pitch and locking mechanism. Verify that the application environment does not exceed the specified temperature range. Consider the free-hanging mounting style for flexible cable routing needs.

Part Context

This component belongs to the Datamate L-Tek rectangular connector system. It serves as a cable-mounted receptacle within the broader M80/M83 connector ecosystem. The series is known for high-density interconnect solutions in demanding environments. It complements various male header options for complete system connectivity.

Replacement Considerations

Public confirmed substitute part numbers: None available.
