Product Detailed Parameters
- Description：5+5 POS. FEMALE DIL VERTICAL THR
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：10
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin-Lead
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：2.2A
- Voltage Rating：800VAC/DC
Download product information
Overview

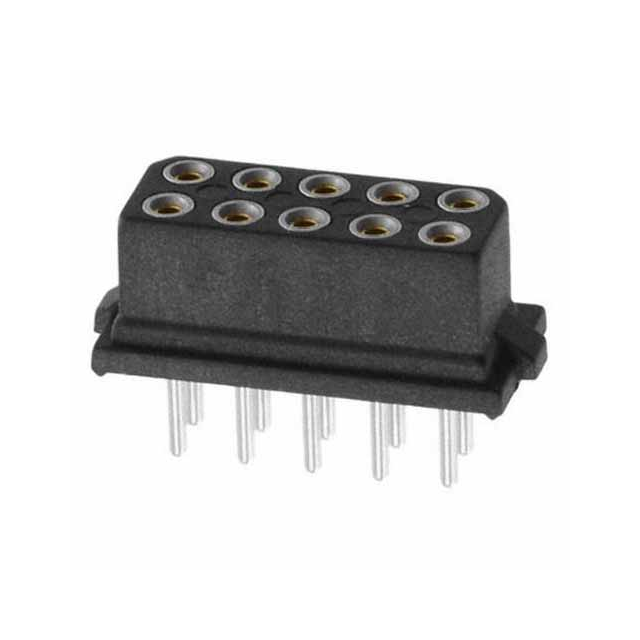

The B5741-210-F-T-0 is a Datamate BS series female receptacle connector manufactured by Harwin Inc. It features a 2-row, 10-position configuration with a 2 mm (0.079 in) pitch. The component utilizes vertical through-hole termination for PCB mounting and accepts wire gauges ranging from 28 AWG to 24 AWG. Contact surfaces are gold-plated, while the shell is tin/lead coated. This DIL socket provides reliable electrical interconnection in compact electronic assemblies.
Feature Summary
- Dual-in-line vertical receptacle design for standard PCB mounting
- Gold-plated contacts ensure low resistance and corrosion resistance
- Compatible with 28 AWG to 24 AWG wire gauges
- Tin/lead plated shell provides environmental protection
Applications
- Industrial control systems requiring robust signal connections
- Consumer electronics utilizing compact header interfaces
- Automotive instrumentation panels
- Medical device internal wiring harnesses
Procurement Notes
Verify RoHS compliance status and specific plating thickness requirements against current datasheets before integration. Confirm that the vertical through-hole footprint matches the target PCB layout dimensions. Ensure mating connectors belong to the same Datamate BS series to guarantee mechanical alignment and pin compatibility.
Selection Notes
Select this component when a 10-position female socket with vertical orientation is required. The 2 mm pitch suits dense board layouts. Verify that the operating current does not exceed the rated capacity of the contact terminals. Consider the tin/lead shell finish if lead-free soldering processes are mandated for the assembly line.
Part Context
This part belongs to the Datamate BS family, designed for high-density interconnects. It mates with corresponding male headers from the same series. The B5741 prefix indicates a female socket variant within the broader connector ecosystem. It serves as a critical interface point between PCB traces and external wiring or cable assemblies.
Replacement Considerations
Direct substitutes include other 10-position, 2mm pitch female sockets from Harwin's Datamate line. Verify identical row count and termination style. Cross-reference pinout configurations to ensure functional equivalence. Alternative manufacturers may offer similar specifications but require mechanical fit verification.
