B5741-214-F-T-0

Overview

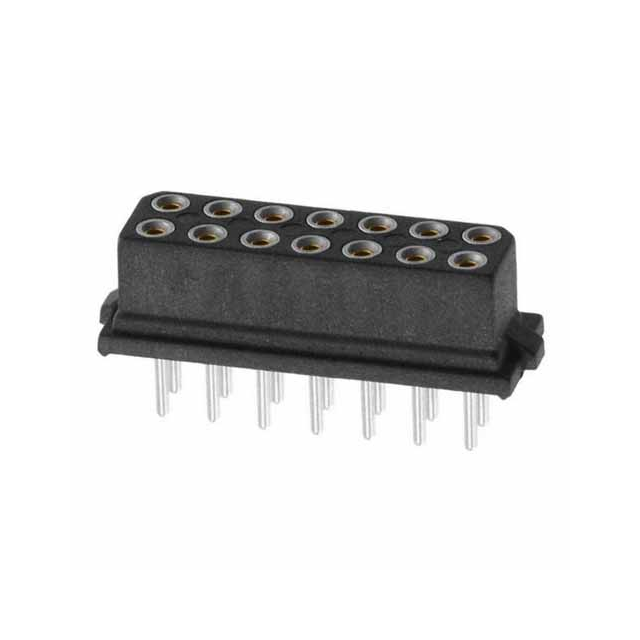

The B5741-214-F-T-0 is a Datamate L-Tek series receptacle connector manufactured by Harwin Inc. It features a 14-position, dual-row configuration with a 2 mm (0.079 in) pitch. The component utilizes gold-plated female socket contacts and tin/lead-plated shells for reliable signal transmission. Designed for cable mount or free-hanging installation, it supports crimp termination for wire gauges ranging from 28 AWG to 24 AWG. The unit operates within a temperature range of -55°C to +125°C and weighs approximately 1.454 g.

Feature Summary

• Dual-row female socket architecture providing 14 positions for high-density interconnects
• Gold-plated contact surfaces ensuring durable electrical performance and corrosion resistance
• Crimp termination method compatible with standard 28–24 AWG wire harnesses

Applications

• Industrial control system wiring harnesses
• Medical device internal connections
• Automotive electronic module interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm plating specifications and shell material variants. Ensure compatibility with mating pins regarding current ratings and mechanical retention forces. Cross-reference the alias M80-8881405 if sourcing through legacy part number systems. Confirm RoHS and REACH compliance status directly from the latest technical documentation provided by Harwin.

Selection Notes

Select this component when a low-profile, dual-row female header is required for cable-to-board or cable-to-cable applications. The 2 mm pitch allows for compact circuit board layouts while maintaining robust mechanical stability. Consider the crimp termination requirement for assembly tooling availability. Evaluate the operating temperature range against environmental conditions to ensure long-term reliability in harsh industrial settings.

Part Context

This receptacle belongs to the Datamate L-Tek family, known for its ruggedized design and secure locking mechanisms. The series is widely utilized in demanding environments where vibration resistance and reliable signal integrity are critical. As a female socket variant, it mates with corresponding male pin headers to form complete connection assemblies.

Replacement Considerations

The part number alias M80-8881405 represents the same component under a different naming convention. No alternative substitute part numbers are publicly confirmed in the provided documentation.
