Product Detailed Parameters
- Description：7+7 POS. FEMALE DIL VERTICAL THR
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：14
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：2.2A
- Voltage Rating：800VAC/DC
Download product information
Overview

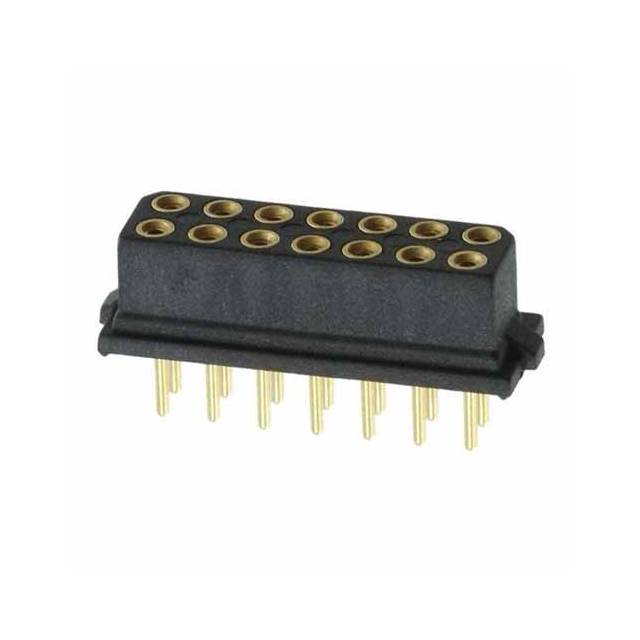

The B5741-214-F-T-2 is a Datamate L-Tek female header receptacle manufactured by Harwin. It features a 14-position configuration arranged in two rows with a 2 mm pitch. The connector utilizes gold-plated contacts and is designed for through-hole termination. It supports wire gauges ranging from 28 AWG to 24 AWG. The unit operates within a temperature range of -55°C to +125°C and weighs approximately 1.454 grams.
Feature Summary
- Dual-row female socket design for compact interconnections
- Gold-plated contacts for reliable signal transmission
- Through-hole solder pin termination style
- RoHS compliant construction
Applications
- Compact electronic system interconnections
- Industrial control modules
- Consumer electronics assemblies
Procurement Notes
Verify the specific suffix 'T-2' against official Harwin documentation to confirm the exact termination and mounting specifications, as variations exist within the B5741 series. Ensure compatibility with mating male pins from the same Datamate L-Tek family. Cross-reference the Mouser part number M80-8881405 if applicable to your supply chain records.
Selection Notes
Select this component when a 14-position, dual-row female header is required for PCB mounting. The 2 mm pitch allows for dense circuit layouts. Ensure the application environment stays within the specified -55°C to +125°C operating range. Verify that the target PCB thickness accommodates the through-hole solder pin length.
Part Context
This part belongs to the Harwin Datamate L-Tek series, known for high-density connectivity solutions. The B5741 prefix typically denotes a female header variant. It is distinct from the B5740 series, which uses crimp termination rather than solder pins. The product falls under the Headers & Wire Housings category.
Replacement Considerations
M80-8881405 is an equivalent manufacturer part number for this component. When substituting, ensure the replacement maintains the 2 mm pitch, 14-position count, and dual-row female socket configuration to guarantee mechanical and electrical compatibility.
