B5741-216-F-T-0

Overview

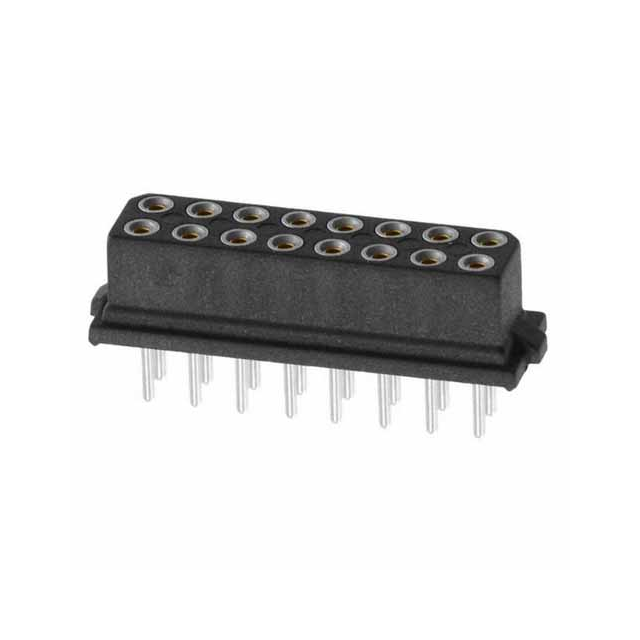

The B5741-216-F-T-0 is a Datamate L-Tek header receptacle manufactured by Harwin. It features a dual row configuration with 16 positions and a 2 mm pitch. The component utilizes gold-plated female contacts designed for crimp termination. It supports wire gauges ranging from 28 AWG to 24 AWG. The operating temperature range spans from -55°C to +125°C. The unit weighs approximately 1.454 grams and is intended for cable mount or free-hanging installation styles.

Feature Summary

• Dual row receptacle design for high-density interconnect applications
• Gold-plated female contacts ensure reliable signal transmission
• Crimp termination method provides secure wire attachment
• Wide operational temperature tolerance for diverse environments

Applications

• Industrial control systems requiring robust connectivity
• Test and measurement equipment interfaces
• Automotive electronics harnesses
• Consumer electronic device internal connections

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating, housing material, and termination style match project requirements. Ensure compatibility with mating pins from the same Datamate L-Tek series. Confirm RoHS and REACH compliance status through the manufacturer's documentation before finalizing procurement orders.

Selection Notes

Select this component when a 16-position dual row connector is required within the Datamate L-Tek ecosystem. Consider the 2 mm pitch constraint and crimp termination capability during mechanical design. Evaluate the -55°C to +125°C temperature rating against environmental conditions. Verify that the 28-24 AWG wire gauge range aligns with the system's wiring specifications.

Part Context

This part belongs to the Harwin Datamate L-Tek family of connectors. The series is known for its compact size and high reliability in demanding applications. The B5741 prefix indicates a specific header receptacle variant within the broader product line, distinguished by its pin count and row configuration compared to other models.

Replacement Considerations

Direct substitutes must be sourced from the Harwin Datamate L-Tek series with identical 16-position, dual-row, 2mm pitch specifications. Cross-brand replacements require careful verification of mechanical dimensions, contact geometry, and mating force characteristics to ensure functional equivalence.
