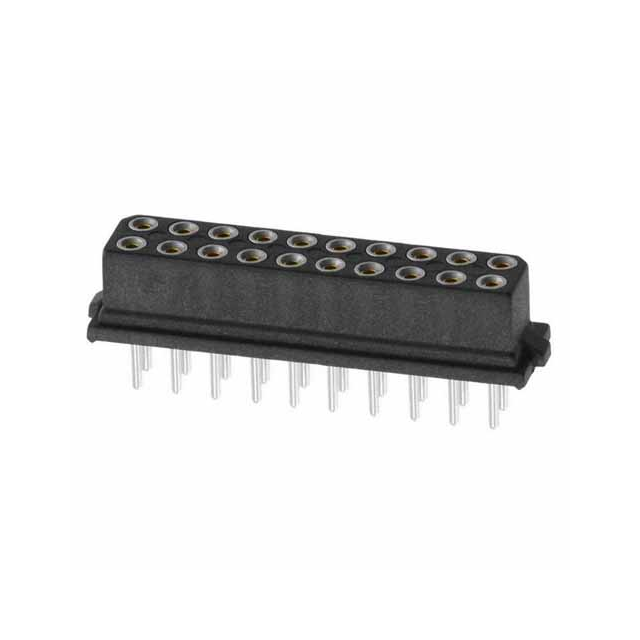

B5741-220-F-T-0

$8.14

Description：10+10 POS. FEMALE DIL VERTICAL T
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:a0647269a049 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10+10 POS. FEMALE DIL VERTICAL T
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：20
Number of Positions Loaded：All
Pitch - Mating：0.079" (2.00mm)
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：12.0µin (0.30µm)
Insulation Color：Black
Insulation Height：0.202" (5.14mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin-Lead
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：2.2A
Voltage Rating：800VAC/DC

Download product information

B5741-220-F-T-0

Overview

The Harwin B5741-220-F-T-0 is a Datamate L-Tek series female receptacle connector designed for through-board mounting. It features a double-row configuration with 20 positions (10+10) and a 2.00mm pitch. The contacts are gold-plated sockets suitable for crimp termination, while the shell utilizes tin/lead plating. Rated at 3A, it supports wire gauges of 28 to 24 AWG and operates within a temperature range of -55°C to +125°C.

Feature Summary

Double-row vertical design with 3mm PCB tail terminations
Gold-plated contact areas ensuring reliable signal transmission
Tin/lead plated shell construction for durability

Applications

Industrial control systems requiring robust interconnects
Test and measurement equipment interfaces
Automotive electronics applications

Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm RoHS compliance status prior to integration. Ensure storage conditions maintain integrity given the specific plating materials used in this connector assembly.

Selection Notes

Select this model when a double-row vertical through-hole connector is required. It is appropriate for designs needing 20 positions with a 2.00mm pitch. Consider the 3A current rating and operating temperature limits during system planning.

Part Context

This component belongs to the Datamate BS family, characterized by high-density connectivity options. It serves as a standard interface solution within Harwin's rectangular connector portfolio, offering reliable performance for various electronic assemblies.
