Product Detailed Parameters
- Description：13+13 POS. FEMALE DIL VERTICAL T
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Bulk,Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：26
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin-Lead
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：2.2A
- Voltage Rating：800VAC/DC
Download product information
Overview

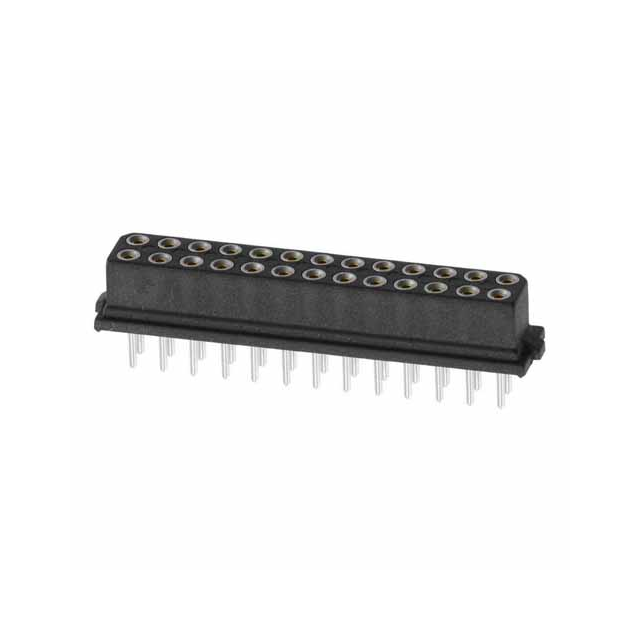

The Harwin B5741-226-F-T-0 is a Datamate L-Tek series receptacle connector featuring 26 positions in a dual-row configuration. It utilizes a 2 mm (0.079 inch) pin-to-pin spacing and is designed for through-hole solder termination. The contacts are female sockets with gold plating, suitable for wire-to-wire or PCB applications. The component supports a wire gauge range of 28 to 24 AWG and operates within a temperature range of -55°C to +125°C.
Feature Summary
- Datamate L-Tek series design with large bore contacts
- Dual-row receptacle configuration for high-density connections
- Through-hole solder termination for secure PCB mounting
Applications
- Wire-to-wire interconnect systems
- PCB header assemblies requiring robust solder joints
- Industrial control panel wiring
Procurement Notes
Verify the specific suffix 'T' indicates through-hole solder pins rather than crimp variants. Confirm RoHS compliance status and check for any product discontinuation notices from Harwin Inc. prior to finalizing procurement plans.
Selection Notes
Select this model when a dual-row, 26-position connector with through-hole termination is required. Ensure the mating plug matches the Datamate L-Tek standard and verify that the 2 mm pitch aligns with the board layout constraints.
Part Context
This component belongs to the Harwin Datamate L-Tek family, which provides versatile rectangular connector solutions. The B5741 prefix typically denotes a receptacle variant within this ecosystem, offering compatibility with other series components sharing the same mechanical footprint and electrical standards.
Replacement Considerations
M80-4C12605L0 is listed as a related part number within the M80 catalog context. Verify exact dimensional and electrical equivalence before substitution.
FAQ
What is the contact type for this connector?
The B5741-226-F-T-0 features female socket contacts.
Does this connector support surface mount installation?
No, the 'T' suffix and specifications indicate it is designed for through-hole solder termination.
