Product Detailed Parameters
- Description：17+17 POS. FEMALE DIL VERTICAL T
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：34
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin-Lead
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：2.2A
- Voltage Rating：800VAC/DC
Download product information
Overview

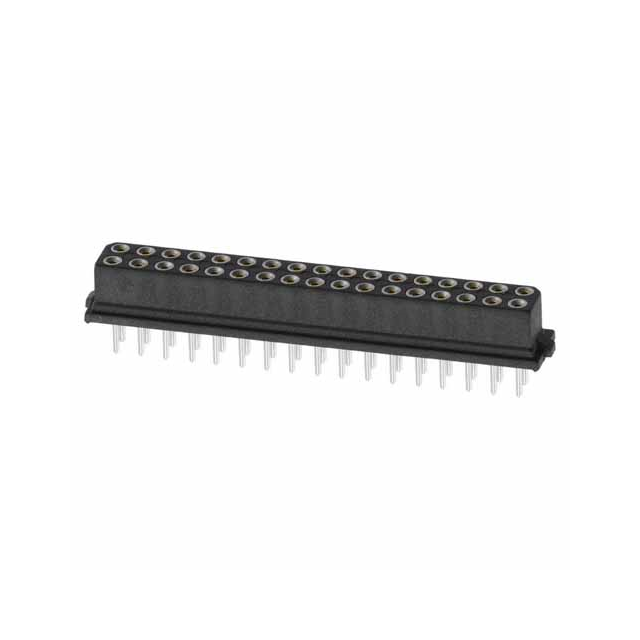

The Harwin B5741-234-F-T-0 is a 34-position female receptacle connector from the Datamate L-Tek series. It features a double-row, straight (vertical) through-board design with 3mm PCB termination. The contacts are gold-finished and rated for 800VAC/DC. This component supports board-to-board or cable applications.
Feature Summary
- Double-row vertical receptacle configuration
- Gold-plated contact finish
- Through-board PCB termination
Applications
- Board-to-board interconnections
- Cable assembly connections
- High-reliability electronic systems
Procurement Notes
Verify the specific suffix T-0 against datasheet requirements to confirm termination style and plating specifications. Ensure compatibility with mating pins in the Datamate L-Tek family. Confirm RoHS compliance status via official documentation before integration into regulated assemblies.
Selection Notes
Select this part for high-voltage applications requiring 800VAC/DC rating. Choose the vertical form factor for direct PCB mounting. Verify that the 34-position count matches circuit density needs. Ensure mating components belong to the same Datamate L-Tek series for proper engagement.
Part Context
This component belongs to the Datamate L-Tek series by Harwin Inc., known for high-reliability connectors. It serves as a female receptacle variant within the broader Datamate ecosystem, designed for robust electrical connections in demanding environments.
Replacement Considerations
M80-8883405 is listed as an alias for related Harwin Datamate parts. Verify exact pin count and termination type when substituting. Cross-reference with official Harwin catalogs for equivalent female receptacles in the same series.
