B5743-208-M-T-1

Overview

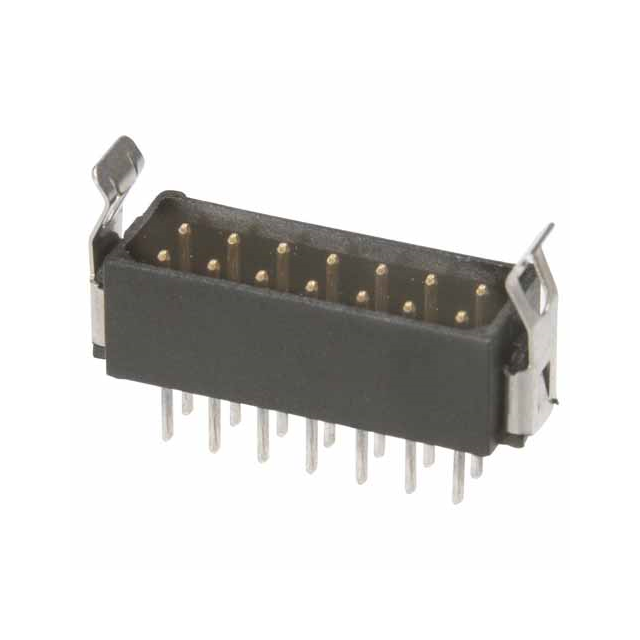

The B5743-208-M-T-1 is a Datamate L-Tek male header manufactured by Harwin Inc. It features an 8-position, dual-row configuration with a 2 mm pitch. Designed for through-hole mounting, the connector utilizes gold-plated pin contacts and solder termination. The unit operates within a temperature range of -55°C to +125°C and includes shrouding for secure mating.

Feature Summary

• Datamate L-Tek series interconnect system
• Male pin contact type with gold plating
• Dual-row shrouded header design
• Through-hole solder termination

Applications

• Industrial control systems
• Medical equipment
• Metering and measurement devices

Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact plating thickness and material composition. Ensure compatibility with corresponding female sockets in the same series. Confirm RoHS compliance status directly from the manufacturer datasheet prior to integration.

Selection Notes

Select this component for applications requiring robust vertical board-to-board connections. The 2 mm pitch allows for dense circuit layouts while maintaining reliable signal integrity. Verify that the housing height and stacking requirements align with the target assembly constraints.

Part Context

This part belongs to the Datamate L-Tek family, known for high-density interconnects. It serves as a male header counterpart to female sockets, facilitating secure electrical pathways in compact electronic assemblies across various industrial sectors.

Replacement Considerations

Cross-reference with M80-8670822 for equivalent specifications. Validate mechanical dimensions and contact alignment before substitution.
