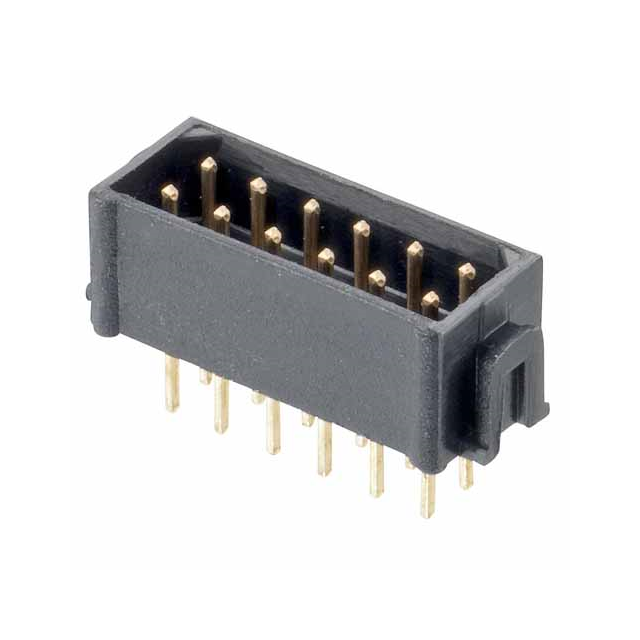

B5743-208-M-T-2

Description：CONN HDR 2MM VERT 8POS
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:812b9a8738a3 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR 2MM VERT 8POS
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.219" (5.56mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyester, Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：800VAC/DC

Download product information

B5743-208-M-T-2

Overview

The B5743-208-M-T-2 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features an 8-position, dual-row configuration with a 2 mm (0.079 in) pitch. Designed for through-hole mounting, the male pin contacts are constructed from phosphor bronze and finished with gold plating to ensure reliable signal transmission. The unit supports a current rating of 3 A and operates within a temperature range of -55°C to +125°C.

Feature Summary

Dual-row shrouded design provides secure alignment and prevents misinsertion during mating.
Gold-plated male pins offer corrosion resistance and stable electrical performance over repeated cycles.
Through-hole solder termination ensures robust mechanical attachment to printed circuit boards.

Applications

Industrial control system interconnections
Medical device internal wiring
Automotive electronics modules

Procurement Notes

Verify the specific suffix 'T-2' against official Harwin documentation to confirm exact contact length and insulation height specifications. Ensure compatibility with corresponding female sockets within the same Datamate series. Confirm RoHS compliance status and REACH SVHC declarations prior to integration into regulated assemblies.

Selection Notes

Select this component when a low-profile, high-density connection is required for board-to-wire applications. The 2 mm pitch allows for compact circuit layouts while maintaining adequate spacing. Consider the 3 A current rating for power distribution needs and verify that the operating temperature range meets environmental requirements.

Part Context

This part belongs to the Datamate L-Tek family, known for its small bore design and versatile connectivity options. The B5743 series specifically addresses applications requiring reliable through-hole headers with durable metal contacts. It complements the broader Datamate ecosystem of plugs, sockets, and accessories.

Replacement Considerations

M80-8670822 is a documented equivalent part number for this component. Verify mechanical dimensions and contact plating thickness before substitution to ensure functional interchangeability.
