Product Detailed Parameters

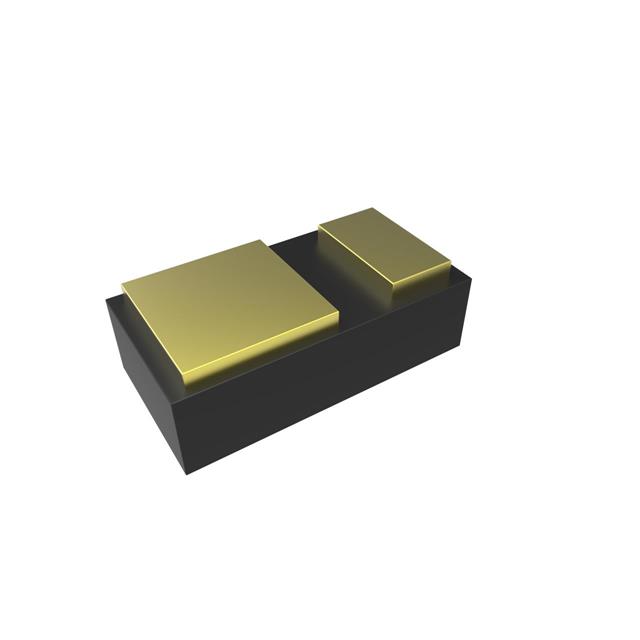

- Description：DIODE SCHOTTKY 40V 1.5A FBP-02L
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io)：1.5A
- Voltage - Forward (Vf) (Max) @ If：580 mV @ 1.5 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：50 µA @ 40 V
- Capacitance @ Vr, F：180pF @ 0V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：0603 (1608 Metric)
- Supplier Device Package：FBP-02L
- Operating Temperature - Junction：125°C
- Grade：-
- Qualification：-
Download product information
Overview
The B58195XP-TP is a Schottky Barrier Rectifier manufactured by Micro Commercial Components (MCC). It features an average rectified output current of 1.5 A and a peak repetitive reverse voltage of 40 V. The device utilizes an FBP-02L package with a maximum power dissipation of 150 mW. Electrical characteristics include a forward voltage drop ranging from 0.40 V to 0.58 V depending on current, a reverse current of 40 μA at 20 V, and a diode capacitance of 180 pF. Operating junction temperature ranges from -55°C to +125°C.
Feature Summary
- Low forward voltage drop for improved efficiency
- Halogen-free construction available via suffix
- Epoxy meets UL 94 V-0 flammability rating
- Lead-free finish compliant with RoHS standards
Applications
- General purpose rectification in low voltage circuits
- Power supply input rectification
- Free-wheeling diodes in DC-DC converters
Procurement Notes
Verify the specific ordering suffix when purchasing. The standard part number includes the -TP designation indicating tape and reel packaging containing 10,000 pieces per reel. Adding the -HF suffix denotes a halogen-free variant. Confirm that the component source is authorized to ensure genuine parts and full traceability as counterfeit prevention measures are emphasized by the manufacturer.
Selection Notes
Select this component for applications requiring a 40 V reverse voltage rating and 1.5 A continuous current capability. The FBP-02L surface mount package is suitable for space-constrained designs. Consider the thermal resistance of 667°C/W and power derating requirements when designing for high ambient temperatures or limited airflow conditions.
Part Context
This component belongs to the B5819 series of Schottky barrier rectifiers produced by Micro Commercial Components. The series offers various current ratings and packages, with the B58195XP specifically providing 1.5 A capacity. The product line emphasizes compliance with environmental standards such as RoHS and provides options for halogen-free manufacturing upon request.
Replacement Considerations
Direct substitutes within the same family include variants with different current ratings or packages. Verify pinout compatibility and electrical parameters against the original design requirements before substitution.
FAQ
What does the -TP suffix indicate?
The -TP suffix indicates that the device is supplied in Tape & Reel packaging, with a standard quantity of 10,000 pieces per reel.
Is the device halogen-free?
Standard versions may not be halogen-free. To obtain a halogen-free version, the -HF suffix must be added to the part number.
What is the maximum operating junction temperature?
The maximum operating junction temperature range extends up to +125°C.
