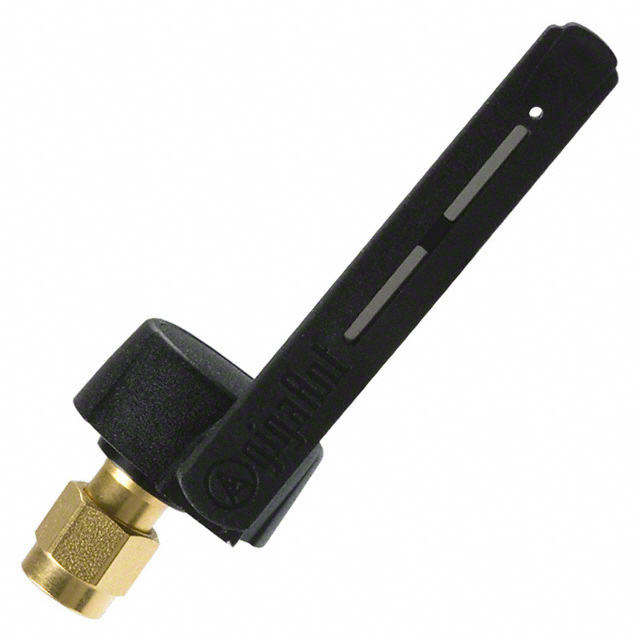

B6090 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Antenova. Its product description is RF ANT 2.4GHZ BLADE SMA MALE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for B6090
- Description：RF ANT 2.4GHZ BLADE SMA MALE
- Series：Titanis
- Mfr：Antenova
- Package：Bulk
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Blade
- Number of Bands：1
- VSWR：1.2
- Return Loss：-
- Gain：4.1dBi
- Features：-
- Termination：SMA Male, Reverse Thread
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：1.902" (48.30mm)
- Applications：Bluetooth, Wi-Fi, WiMedia™, Zigbee™
- Power - Max：-
Antennas RF datasheet and documents for B6090
