B78476A8065A003

$1.50

Description：PULSE XFMR 1CT:1CT 350UH
Series：-
Mfr：EPCOS - TDK Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3487ce370c0b Category: Pulse Transformers Brand: EPCOS - TDK Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1CT:1CT 350UH
Series：-
Mfr：EPCOS - TDK Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max)：0.220" (5.60mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

B78476A8065A003

Overview

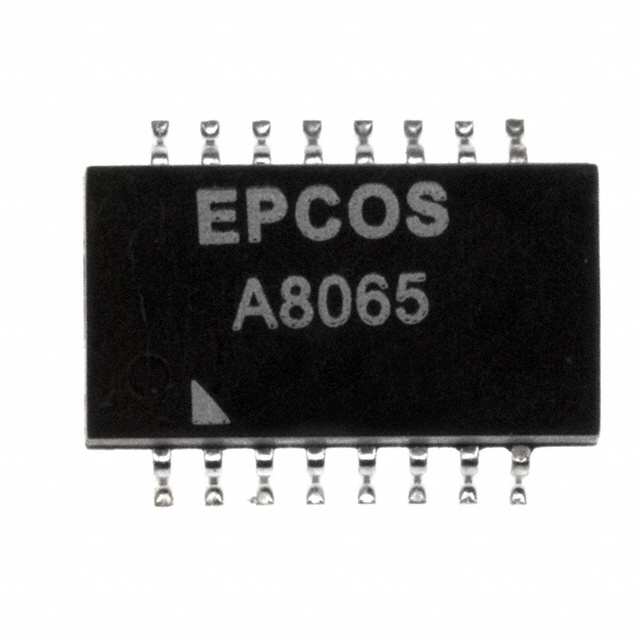

The B78476A8065A003 is a single-channel pulse transformer designed for LAN applications, specifically supporting 10/100 Base-T Ethernet standards. It features a ferrite toroid core with UL 94 V-0 rated case and potting materials. The component measures 12.70 mm in length, 7.11 mm in width, and has a maximum seated height of 5.60 mm. It operates within a temperature range of -40°C to +85°C.
