B78476A8251A003

$3.20

Description：PULSE XFMR 1CT:1CT 350UH
Series：-
Mfr：EPCOS - TDK Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:65650f4394cf Category: Pulse Transformers Brand: EPCOS - TDK Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1CT:1CT 350UH
Series：-
Mfr：EPCOS - TDK Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 10/100/1000 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.693" L x 0.476" W (17.60mm x 12.10mm)
Height - Seated (Max)：0.230" (5.85mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

B78476A8251A003

Overview

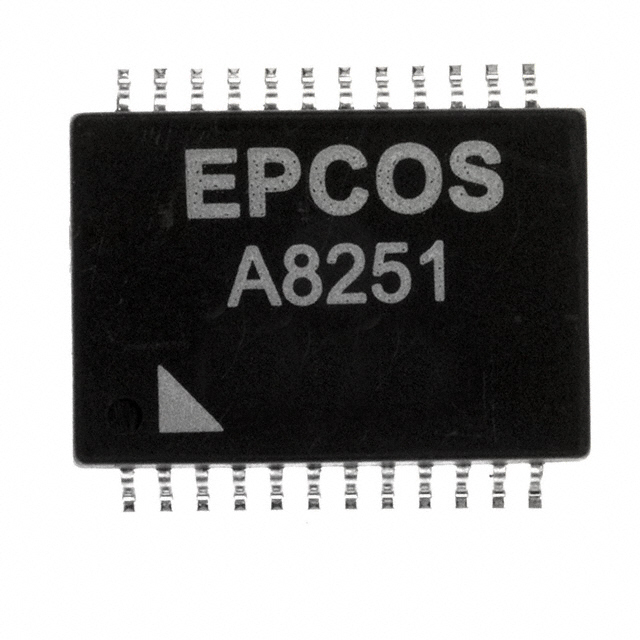

The B78476A8251A003 is a LAN pulse transformer designed for 10/100/1000 Base-T Ethernet applications. It features a 350µH inductance and a 1CT:1CT turns ratio. The component supports surface mount installation with dimensions of 17.60mm x 12.10mm x 5.85mm maximum height. It operates within a temperature range of -40°C to +85°C.

Feature Summary

Designed for 10/100/1000 Base-T LAN applications
Surface mount package construction
Extended operating temperature range capability

Applications

Ethernet network interface circuits
LAN transceiver modules
Computer networking hardware

Procurement Notes

Verify the manufacturer part number B78476A8251A003 against official TDK documentation to ensure authenticity. Confirm that the specific suffix matches the required 350µH inductance specification. Check RoHS compliance status and moisture sensitivity level requirements for your assembly process before ordering.

Selection Notes

Select this component when designing Gigabit Ethernet interfaces requiring a 1:1 turns ratio and 350µH common mode inductance. Ensure the PCB footprint accommodates the 17.60mm x 12.10mm surface mount package. Verify thermal management capabilities align with the -40°C to +85°C operational range specified for commercial applications.

Part Context

This part belongs to the B78476A series of magnetic modules for LAN applications manufactured by EPCOS, now part of TDK Electronics. These components are specialized pulse transformers intended for data communication networks. The series provides integrated magnetics solutions for Ethernet physical layer implementations.

Replacement Considerations

Consult official TDK cross-reference lists for verified substitutes. Ensure any replacement maintains identical 350µH inductance, 1:1 turns ratio, and surface mount dimensions. Verify compatibility with 10/100/1000 Base-T standards.
