Product Detailed Parameters
- Description：FERRITE BEAD 800 OHM AXIAL 1LN
- Series：B82114
- Mfr：EPCOS - TDK Electronics
- Package：Bulk
- Filter Type：-
- Number of Lines：-
- Impedance @ Frequency：800 Ohms @ 100 MHz
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Ratings：-
- Operating Temperature：-
- Package / Case：Axial
- Mounting Type：Through Hole
- Height (Max)：-
- Size / Dimension：0.256" Dia x 0.394" L (6.50mm x 10.00mm)
- Features：-
Download product information
Overview

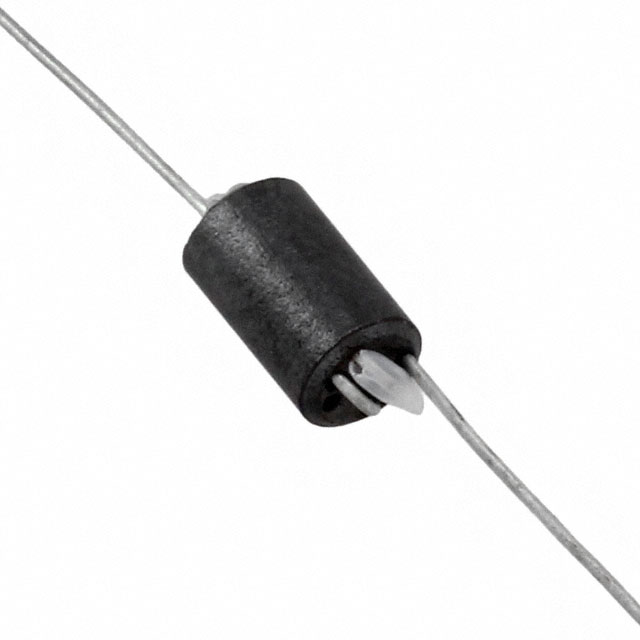

The B82114RA1 is an axial ferrite bead manufactured by EPCOS, now part of TDK Electronics. It is designed for electromagnetic interference (EMI) suppression in electronic circuits. The component features a through-hole mounting type with dimensions of 6.50mm diameter and 10.00mm length. Its primary electrical characteristic is an impedance of 800 Ohms measured at a frequency of 100 MHz.
Feature Summary
- Provides high impedance to suppress electromagnetic interference signals
- Utilizes axial leaded construction for through-hole PCB integration
- Engineered for reliable noise reduction in sensitive electronic applications
Applications
- Signal line filtering in consumer electronics
- Noise suppression in industrial control systems
- Electromagnetic compatibility enhancement in communication devices
Procurement Notes
Verify the specific ordering code suffix against official TDK documentation to ensure exact impedance and package specifications. Confirm RoHS compliance status and environmental certifications required for your target market. Cross-reference the manufacturer's latest datasheet for any updates on material composition or recommended soldering profiles prior to final procurement decisions.
Selection Notes
Select this component when an axial form factor is required for circuit board layout constraints. Ensure the operating frequency range aligns with the 100 MHz impedance specification for effective noise attenuation. Consider the physical dimensions of 6.50mm x 10.00mm during mechanical design to guarantee adequate clearance and secure mounting within the enclosure.
Part Context
This ferrite bead belongs to the broader category of passive components produced by TDK Electronics under the former EPCOS brand. These components are integral to ensuring signal integrity and system reliability across various industries. The product line focuses on providing robust solutions for power supply filtering and data line protection against transient disturbances.
Replacement Considerations
Consult official TDK substitution guides for verified equivalent parts. Ensure any alternative maintains the same 800 Ohm impedance at 100 MHz and compatible axial package dimensions.
