B82132A5401M000

Fixed Inductors Overview

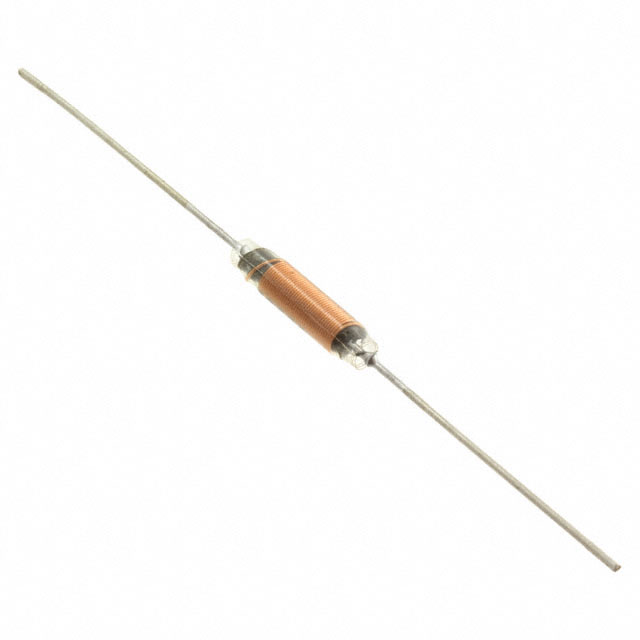

The B82132A5401M000 is a fixed through-hole inductor from the EPCOS B82132 series, manufactured by TDK Electronics. It features an iron drum core and axial packaging with a nominal inductance of 50 µH and a tolerance of ±20%. The component supports rated currents ranging from 0.15 A to 6 A across the series, with a maximum rated voltage of 500 V AC/DC. Designed for high resonant frequency applications, it complies with EN 60938 standards and operates within a temperature range of -55°C to 125°C.

Fixed Inductors Feature Summary

• High resonant frequency design suitable for switching applications
• Compliance with EN 60938 electromagnetic compatibility standards
• Robust iron drum core construction for stable performance

Fixed Inductors Applications

• Switching power supply circuits
• Electromagnetic interference filtering
• Industrial control systems

Fixed Inductors Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the specific batch matches the required RoHS and REACH compliance status. Check for any product change notifications regarding the B8213 series, as availability may vary due to lifecycle management. Ensure storage conditions adhere to standard electronic component handling guidelines to maintain integrity.

Fixed Inductors Selection Notes

Select this inductor for applications requiring high-frequency operation and strict EMC compliance. Consider the 50 µH inductance value and current rating relative to circuit requirements. Evaluate thermal performance within the specified -55°C to 125°C range. Note that impedance characteristics may shift at frequencies above 10 MHz, affecting suitability for very high-speed switching designs.

Fixed Inductors Part Context

This component belongs to the EPCOS B82132 series of fixed inductors, part of TDK Electronics' broader portfolio of passive components. The series is designed for robust industrial and automotive applications, emphasizing reliability and electromagnetic compatibility. As part of the TDK group, these components benefit from extensive testing and quality assurance protocols established for critical electronic systems.

Fixed Inductors Replacement Considerations

Public confirmed substitute: 5300-27-RC (Bourns Inc.). Verify electrical parameters such as inductance, current rating, and physical dimensions before substitution.
