B82133A5401M000

$0.99

Description：FIXED IND 130UH 400MA 4.8 OHM TH
Series：B82133
Mfr：EPCOS - TDK Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d4d1e5655f4e Category: Fixed Inductors Brand: EPCOS - TDK Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

B82133A5401M000 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is FIXED IND 130UH 400MA 4.8 OHM TH. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for B82133A5401M000

Description：FIXED IND 130UH 400MA 4.8 OHM TH
Series：B82133
Mfr：EPCOS - TDK Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Iron
Inductance：130 µH
Tolerance：±20%
Current Rating (Amps)：400 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：4.8Ohm
Q @ Freq：-
Frequency - Self Resonant：18MHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Through Hole
Package / Case：Axial
Supplier Device Package：-
Size / Dimension：0.295" Dia x 0.984" L (7.50mm x 25.00mm)
Height - Seated (Max)：-
Features：-

Fixed Inductors datasheet and documents for B82133A5401M000

B82133A5401M000

Fixed Inductors Overview

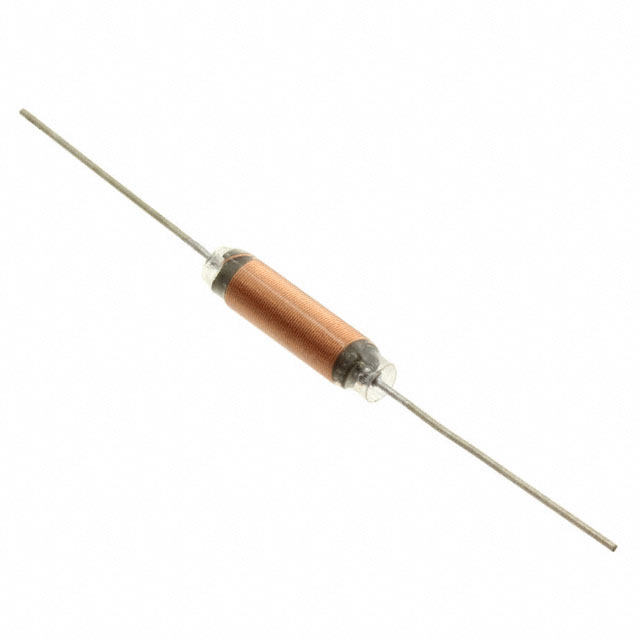

The B82133A5401M000 is a fixed inductor manufactured by EPCOS (TDK Electronics). It features an inductance of 130 µH with a maximum current rating of 400 mA. The component has a DC resistance of 4.8 Ohms and utilizes an unshielded drum core, wirewound construction. Designed for axial mounting, it operates within a temperature range of -55°C to 125°C.

Fixed Inductors Feature Summary

Unshielded drum core wirewound design
Axial through-hole mounting configuration
High-temperature operational stability

Fixed Inductors Applications

Power supply filtering circuits
General electronic equipment signal processing
Automotive electronics systems

Fixed Inductors Procurement Notes

Verify the specific part number against official TDK documentation to confirm availability status. Check for recent product change notifications or lifecycle updates that may affect procurement. Ensure compatibility with existing circuit designs before ordering.

Fixed Inductors Selection Notes

Select this component based on its 130 µH inductance and 400 mA current handling capabilities. Consider the 4.8 Ohm DC resistance for power loss calculations. Verify that the axial package fits the target PCB layout and meets thermal requirements.

Fixed Inductors Part Context

This inductor belongs to the B8213x series from EPCOS, a division of TDK Electronics. The series provides reliable passive components for various industrial and consumer applications. TDK focuses on high-quality magnetic materials and precision manufacturing for consistent performance.
