B82442H1475K000

Fixed Inductors Overview

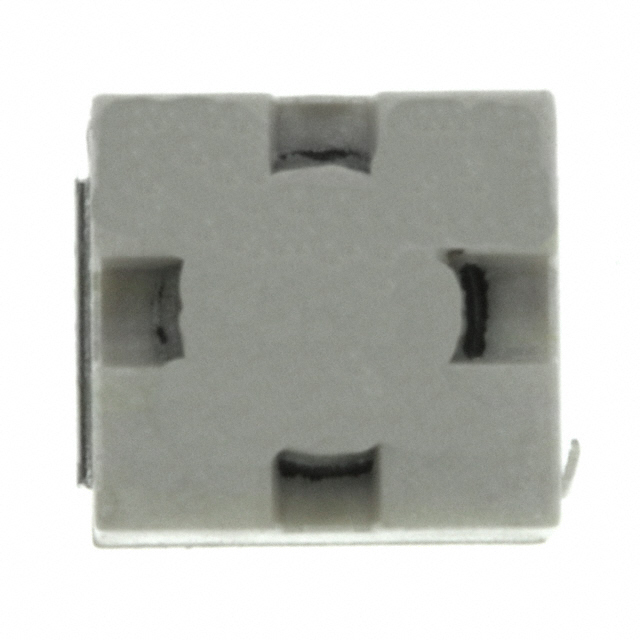

The B82442H1475K000 is a surface mount wire-wound inductor from the EPCOS SIMID series. It features a ferrite core and an unshielded construction within a 2220 (5650M) package measuring 5.6 x 5 x 5 mm. The component provides a nominal inductance of 4.7 mH with a tolerance of ±10%. It has a maximum DC current rating of 50 mA and a DC resistance of 62.4 Ω. The device operates reliably across a temperature range of -55°C to +150°C.

Fixed Inductors Feature Summary

• Utilizes a molded wire-wound structure with a ferrite core for stable performance.
• Designed for surface mount technology applications requiring compact footprints.
• Features an unshielded configuration suitable for general-purpose filtering.

Fixed Inductors Applications

• RF inductor circuits
• General purpose signal processing
• Electronic equipment filtering

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official EPCOS or TDK Electronics documentation to confirm technical specifications. Ensure that the procurement channel provides valid traceability and authenticity certificates. Cross-reference the package dimensions and electrical ratings with the latest datasheet to prevent integration errors during the sourcing process.

Fixed Inductors Selection Notes

Select this component when a high inductance value of 4.7 mH is required in a small surface mount form factor. Consider the low current rating of 50 mA and high DC resistance when designing power paths. The wide operating temperature range supports deployment in demanding environmental conditions where thermal stability is critical for circuit reliability.

Fixed Inductors Part Context

This component belongs to the B82442H series of SMT inductors manufactured by EPCOS, now part of TDK Electronics. The series is characterized by molded wire-wound designs optimized for automated assembly processes. These inductors are engineered to meet RoHS compliance standards and provide consistent electrical characteristics for modern electronic manufacturing requirements.

Fixed Inductors Replacement Considerations

Compatible substitutes include B82442T1475J000 and B82442H1474K000. Verify that alternative part numbers match the required inductance, current handling capabilities, and physical package dimensions before implementation.

Fixed Inductors FAQ

What is the core material used in this inductor?

The B82442H1475K000 utilizes a ferrite core material for its magnetic circuit.

Is this component shielded?

No, the B82442H1475K000 is an unshielded inductor design.
