B82723A2202N001

Overview

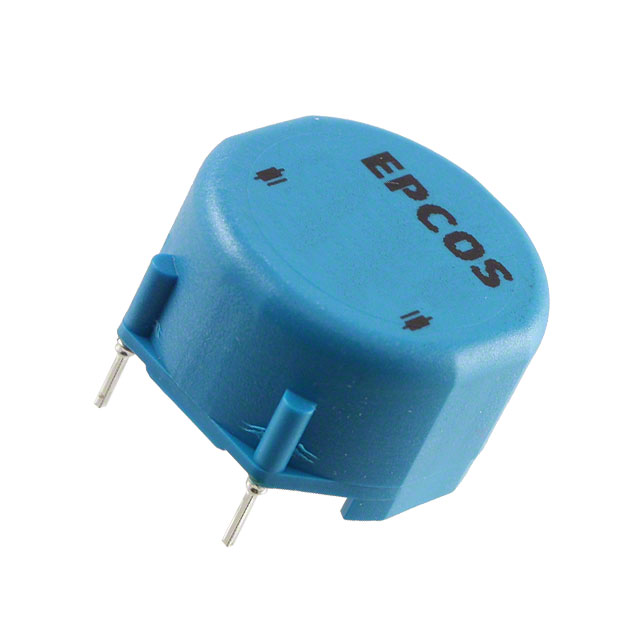

The B82723A2202N001 is a current-compensated ring core double choke from the EPCOS B82723A series. It features a rated inductance of 5.6 mH and a rated current of 2 A. The component has a maximum DC resistance of 160 mΩ and operates within a temperature range of -40 °C to +125 °C. Designed for power line applications, it supports a rated voltage of 250 V AC. The unit utilizes a radial through-hole mounting configuration with a maximum height of 16.80 mm.

Feature Summary

• Current-compensated ring core design for efficient magnetic field cancellation
• Radial leaded construction suitable for through-hole PCB mounting
• High thermal stability operating up to 125 °C

Applications

• Power line filtering in industrial equipment
• EMI suppression in consumer electronics
• Data processing power supply circuits

Procurement Notes

Verify the specific suffix N001 against the manufacturer's latest datasheet to confirm pinout and mechanical dimensions. Ensure the selected variant meets the required UL file number E70122 for regional safety compliance. Cross-reference the 160 mΩ DCR specification with circuit requirements to validate thermal performance under continuous load conditions.

Selection Notes

Select this component when a 5.6 mH inductance at 2 A is required for common mode noise reduction. The radial package facilitates automated insertion or manual assembly on standard PCBs. Consider the 160 mΩ DC resistance for voltage drop calculations in low-voltage power distribution paths where efficiency is critical.

Part Context

This part belongs to the B82723A series of power line chokes manufactured by EPCOS (TDK). The series covers inductances from 1 mH to 56 mH with rated currents ranging from 0.5 A to 6 A. These components are engineered for robust performance in AC power line environments, offering reliable electromagnetic interference suppression across various industrial and consumer applications.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model are not available in the provided documentation. Verify compatibility with alternative EPCOS series such as B82720A or B82724A only if electrical parameters and mechanical footprints match exactly.
