B82723A2602N001

Overview

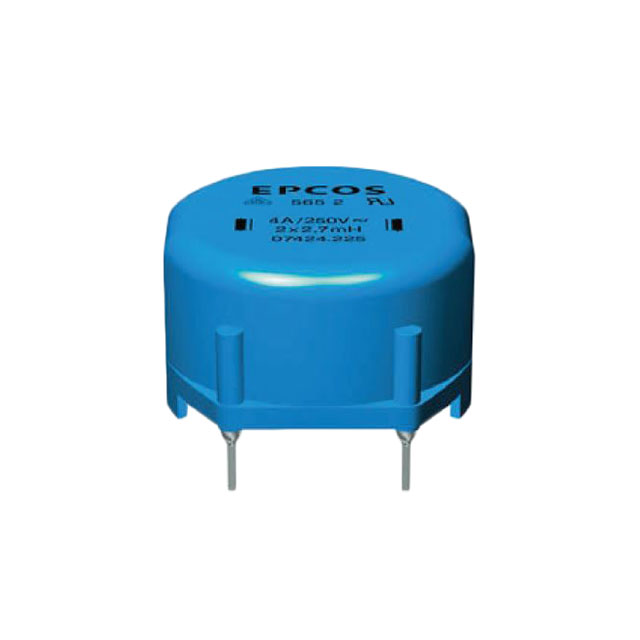

The B82723A2602N001 is a two-line common mode choke manufactured by EPCOS (TDK Electronics). It is designed for power line filtering in through-hole applications. The component features a ferrite core and is RoHS compliant. It operates within a temperature range of -40°C to +125°C. The device is classified as a general purpose inductor suitable for current-compensated ring core double choke configurations.

Feature Summary

• Two-line common mode choke design for effective noise suppression
• Ferrite core construction for stable magnetic performance
• Through-hole mounting for robust mechanical integration
• RoHS compliant manufacturing process

Applications

• Power supply input filtering
• Battery charger circuits
• Portable electronic device protection

Procurement Notes

Verify the exact part number against official EPCOS/TDK documentation to ensure compatibility with specific circuit requirements. Confirm that the through-hole package dimensions and lead spacing match the target PCB layout. Check for any specific environmental certifications or material declarations required for the intended application region.

Selection Notes

Select this component when a two-line common mode choke is required for power line filtering in through-hole designs. Ensure the operating temperature range of -40°C to +125°C meets the system's thermal conditions. Verify that the inductance and current ratings align with the specific noise suppression and power handling needs of the application.

Part Context

This component belongs to the B82723 series of common mode chokes from EPCOS, now part of the TDK Group. These components are widely used in industrial and consumer electronics for electromagnetic interference suppression. The series offers various inductance values and current ratings to suit different power line filtering requirements.

Replacement Considerations

Consult official EPCOS/TDK substitution guides for verified alternative part numbers. Ensure any replacement maintains identical electrical characteristics, physical dimensions, and mounting style to guarantee seamless integration without redesigning the PCB.

FAQ

What type of core material is used in the B82723A2602N001?

The component utilizes a ferrite core for its magnetic properties.

Is the B82723A2602N001 suitable for high-temperature environments?

Yes, it is rated for operation up to +125°C.
