B82723J2102N001

Overview

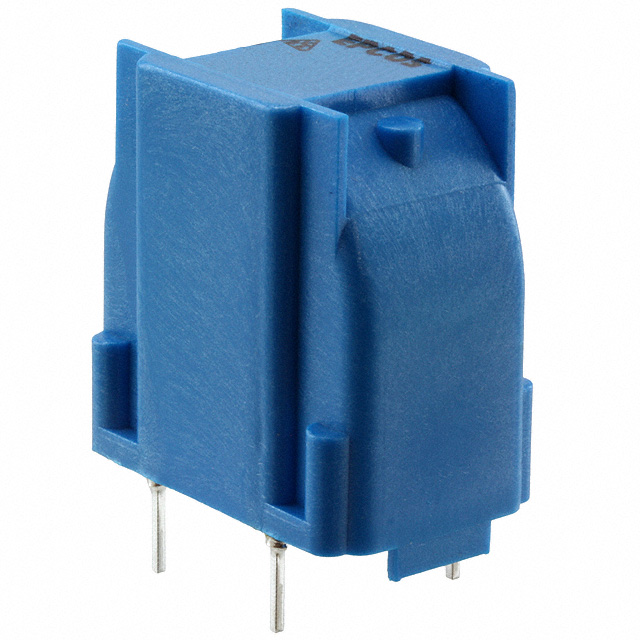

The B82723J2102N001 is a through-hole common mode choke manufactured by EPCOS - TDK Electronics. It features an inductance of 27mH and supports a DC current rating of 1A. The component has a maximum DC resistance of 0.75 ohms and operates within a temperature range from -40°C to +125°C. Its physical dimensions are 28x18.6x30.5mm, with an inductance tolerance of ±30%.

Feature Summary

• Provides effective common mode noise suppression for differential signal lines
• Designed for through-hole mounting on printed circuit boards
• Capable of handling continuous direct current up to 1A

Applications

• Industrial equipment power supply filtering
• Automotive electronics noise reduction
• Information technology hardware EMI mitigation

Procurement Notes

Verify the complete 15-digit ordering code against official TDK documentation to ensure correct specification matching. Confirm that the package type and pin configuration align with the target PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when a high inductance value of 27mH is required for low-frequency noise attenuation. Ensure the application current does not exceed the 1A rating to prevent saturation or excessive heating. Verify that the through-hole footprint matches the available board space.

Part Context

This part belongs to the B82723 series of common mode chokes produced by EPCOS, now integrated into TDK Electronics. The series is designed for general-purpose electromagnetic interference suppression in various electronic circuits requiring robust noise filtering capabilities.

Replacement Considerations

Consult official TDK cross-reference lists for verified substitutes. Do not assume functional equivalence based solely on similar inductance values without verifying current ratings and physical dimensions.
