B82723J2402N001

Overview

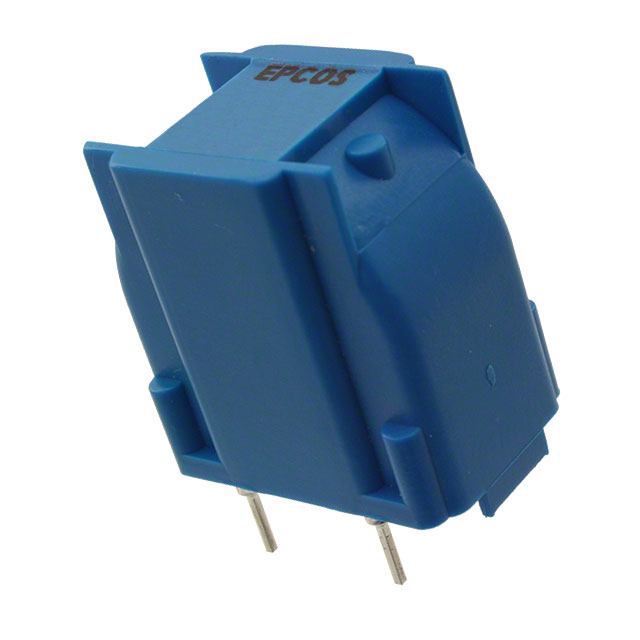

The B82723J2402N001 is a current-compensated ring core double choke manufactured by EPCOS (TDK Electronics). It features a vertical package with four pins and operates within a temperature range of -40°C to 125°C. The component has an inductance of 2.7 mH, a maximum DC resistance of 60 mOhm, and a rated AC voltage of 250 V. It supports a maximum current rating of 4 A and holds ENEC and UR approval certifications.

Feature Summary

• Current-compensated ring core design for power line applications
• Vertical through-hole mounting configuration
• RoHS compliant construction

Applications

• Power line chokes
• EMI filtering in AC circuits
• General purpose inductor applications

Procurement Notes

Verify the specific ordering suffix against official TDK/EPCOS documentation to ensure correct pin configuration and tolerance. Confirm that the vertical package style matches the target PCB layout requirements. Check for updated environmental compliance declarations such as RoHS3 status prior to final procurement decisions.

Selection Notes

Select this component when a 2.7 mH inductance value is required for common mode noise suppression in 250 V AC environments. Ensure the 4 A current rating aligns with the circuit's operational load. Consider the vertical form factor for space-constrained board designs requiring through-hole termination.

Part Context

This part belongs to the B82723 series of current-compensated ring core double chokes. These components are designed for use in power supplies and electronic equipment where electromagnetic interference needs to be mitigated on AC mains lines. The series offers various inductance values tailored for different current ratings.

Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Cross-reference electrical parameters including inductance, current rating, and physical dimensions before considering alternative suppliers.
