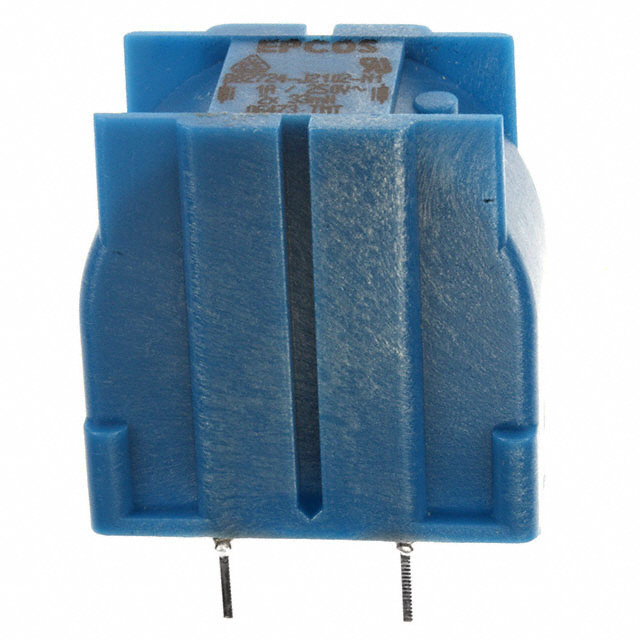

B82724J2102N001

$2.49

Description：CMC 33MH 1A 2LN TH
Series：B82724
Mfr：EPCOS - TDK Electronics
Package：Tray

SKU:6250f4fd8a5f Category: Common Mode Chokes Brand: EPCOS - TDK Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 33MH 1A 2LN TH
Series：B82724
Mfr：EPCOS - TDK Electronics
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：750mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：ENEC, UR, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：1.232" L x 0.728" W (31.30mm x 18.50mm)
Height (Max)：1.307" (33.20mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：33 mH @ 10 kHz
Impedance @ Frequency：-

Download product information

B82724J2102N001

Overview

The B82724J2102N001 is a current-compensated ring core double choke manufactured by EPCOS (TDK). It features a ferrite core and radial leads for through-hole mounting. The component has an inductance of 33 mH, a maximum DC current rating of 1 A, and a maximum DC resistance of 750 mOhms. It operates within a temperature range of -40 °C to +125 °C and is rated for 250 V AC.

Feature Summary

Current-compensated design utilizing a ring core structure
Ferrite core construction for power line applications
Radial leaded package for vertical mounting

Applications

Power line filtering
EMI suppression in electronic circuits
Common mode noise reduction

Procurement Notes

Verify the specific suffix against official TDK/EPCOS documentation to confirm exact electrical tolerances and packaging details. Ensure the procurement source provides valid RoHS compliance certificates. Cross-reference the manufacturer part number with authorized distributor databases to prevent counterfeit components. Confirm that the supplied units match the specified 33 mH inductance and 1 A current ratings.

Selection Notes

Select this component for applications requiring common mode chokes with high inductance values. The 1 A current rating suits moderate power line filtering needs. Verify that the physical dimensions fit the available PCB space. Consider the operating temperature range when designing for extreme environmental conditions. Ensure the voltage rating meets the circuit requirements.

Part Context

This component belongs to the B82724 series of power line chokes from EPCOS. These devices are designed for general-purpose electromagnetic interference suppression. The series offers various inductance values and current ratings to suit different power line filtering requirements across industrial and consumer electronics.

Replacement Considerations

Check for direct substitutes within the B82724 series or compatible EMI filter families. Verify that any replacement matches the 33 mH inductance, 1 A current rating, and physical footprint. Consult official cross-reference lists for verified alternatives.
