Product Detailed Parameters
- Description：CMC 3.3MH 12A 2LN TH
- Series：B82725
- Mfr：EPCOS - TDK Electronics
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：12A
- DC Resistance (DCR) (Max)：12mOhm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：ENEC, UR, VDE
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.732" L x 1.669" W (44.00mm x 42.40mm)
- Height (Max)：0.984" (25.00mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：3.3 mH @ 10 kHz
- Impedance @ Frequency：-
Download product information
Overview

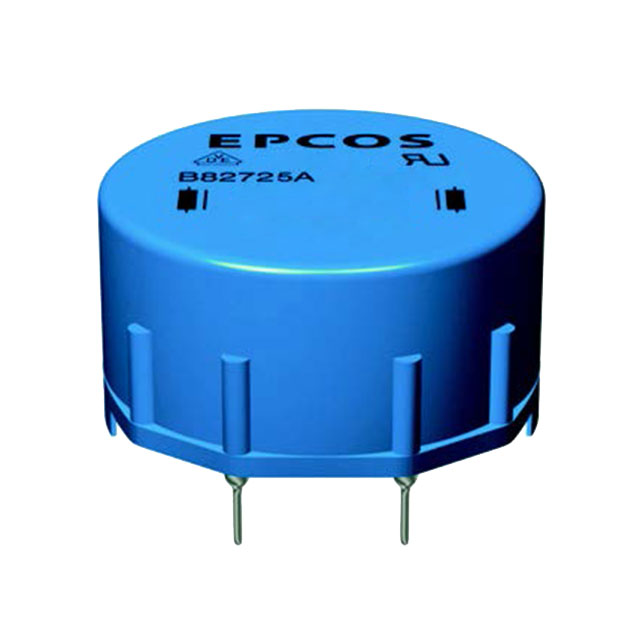

The B82725A2123N040 is a current-compensated ring core double choke from the EPCOS (TDK) B82725A series, designed for power line filtering applications. It features an inductance of 3.3 mH and supports a rated current of 12 A with a DC resistance of 12 mOhm. The component operates within a temperature range of -40°C to 125°C and utilizes a horizontal through-hole mounting configuration. Its physical dimensions are 44.00 mm x 42.40 mm x 25.00 mm max.
Feature Summary
- Current-compensated ring core design for effective common mode noise suppression
- Dual-line power line filtering capability
- Robust construction suitable for high-current industrial environments
Applications
- Industrial power supply input filtering
- Electromagnetic interference suppression in AC power lines
- Compliance support for electromagnetic compatibility standards
Procurement Notes
Verify the complete part number including the suffix N040 to ensure correct packaging and specifications. Confirm that the 12 A rated current and 3.3 mH inductance align with the specific circuit requirements. Check for UL file number E70122 certification if regulatory compliance is mandatory for the end application.
Selection Notes
Select this component when a 3.3 mH inductance at 12 A is required for power line chokes. Ensure the horizontal through-hole package fits the PCB layout constraints. Compare against other B82725A variants if different inductance or current ratings are needed for the specific power stage design.
Part Context
This component belongs to the B82725A family of power line chokes manufactured by EPCOS (TDK). These devices are engineered for robust performance in demanding industrial settings. The series offers various inductance and current combinations while maintaining consistent physical dimensions and mounting styles for standardized integration.
Replacement Considerations
Other B82725A series parts with identical mechanical dimensions may serve as alternatives if electrical parameters match. Verify pinout compatibility and thermal characteristics before substitution.
