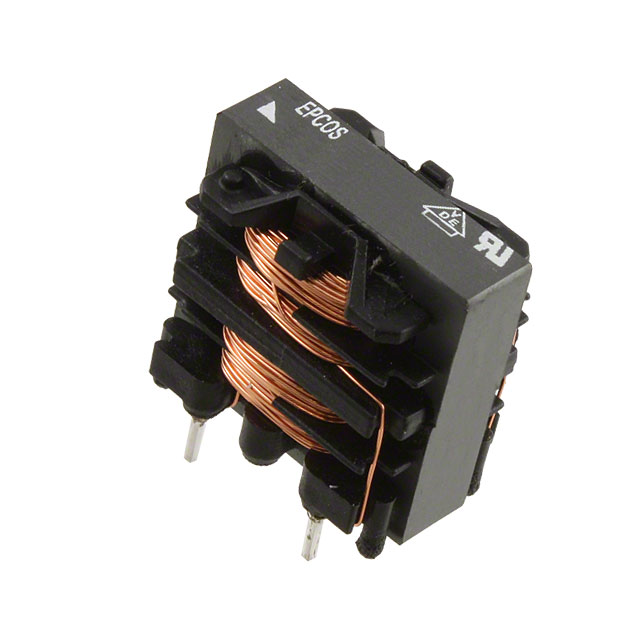

B82731T2102A020

$1.69

Description：CMC 10MH 1A 2LN TH
Series：B82731
Mfr：EPCOS - TDK Electronics
Package：Bulk

SKU:cba2328538b7 Category: Common Mode Chokes Brand: EPCOS - TDK Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 10MH 1A 2LN TH
Series：B82731
Mfr：EPCOS - TDK Electronics
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：630mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：ENEC, UR, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：0.846" L x 0.531" W (21.50mm x 13.50mm)
Height (Max)：0.831" (21.10mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：10 mH @ 10 kHz
Impedance @ Frequency：-

Download product information

B82731T2102A020

Overview

The B82731T2102A020 is a current-compensated E-core double choke manufactured by EPCOS (TDK). It features a ferrite core and radial termination style. The component has an inductance of 65 uH with a tolerance of -30% to +50%. It supports a maximum DC current of 1.8 A and has a maximum DC resistance of 200 mOhms. The physical dimensions are 21.1 mm in height, 21.5 mm in width, and 13.5 mm in case length. It operates within a temperature range of -40 °C to +125 °C and carries ENEC, UR, and VDE approvals.

Feature Summary

Current-compensated design for power line applications
E-core double choke construction with ferrite material
Multiple safety agency approvals including ENEC, UR, and VDE

Applications

Power line chokes
EMI suppression in AC circuits
General purpose filtering

Procurement Notes

Verify the specific suffix code against the manufacturer's official datasheet to confirm exact electrical tolerances and packaging details. Ensure that the required safety certifications such as ENEC, UR, or VDE match the project specifications. Confirm the operating temperature range and physical footprint compatibility with the intended PCB layout before finalizing procurement orders.

Selection Notes

Select this component for applications requiring current-compensated filtering on AC power lines. Consider the 65 uH inductance value and 1.8 A current rating to ensure adequate performance for the target circuit. Verify that the radial mounting style and specified dimensions fit within the available enclosure space. Check for necessary regulatory approvals based on the end-product market requirements.

Part Context

This part belongs to the B82731T series of fixed inductors produced by EPCOS, now part of TDK Electronics. The series includes various current-compensated E-core double chokes designed for electromagnetic interference suppression. These components are widely used in industrial and consumer electronics for power line filtering.

Replacement Considerations

Consult the official TDK EPCOS replacement guide for verified substitute part numbers. Do not assume cross-compatibility with other series without checking pinout, inductance, and current ratings.
