B82733F2112B001

$1.81

Description：CMC 47MH 1.1A 2LN TH
Series：B82733
Mfr：EPCOS - TDK Electronics
Package：Tray

SKU:b14b2ea995bf Category: Common Mode Chokes Brand: EPCOS - TDK Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 47MH 1.1A 2LN TH
Series：B82733
Mfr：EPCOS - TDK Electronics
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.1A
DC Resistance (DCR) (Max)：804mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：300V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：ENEC, UR, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：1.043" L x 0.976" W (26.50mm x 24.80mm)
Height (Max)：0.551" (14.00mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：47 mH @ 10 kHz
Impedance @ Frequency：-

Download product information

B82733F2112B001

Overview

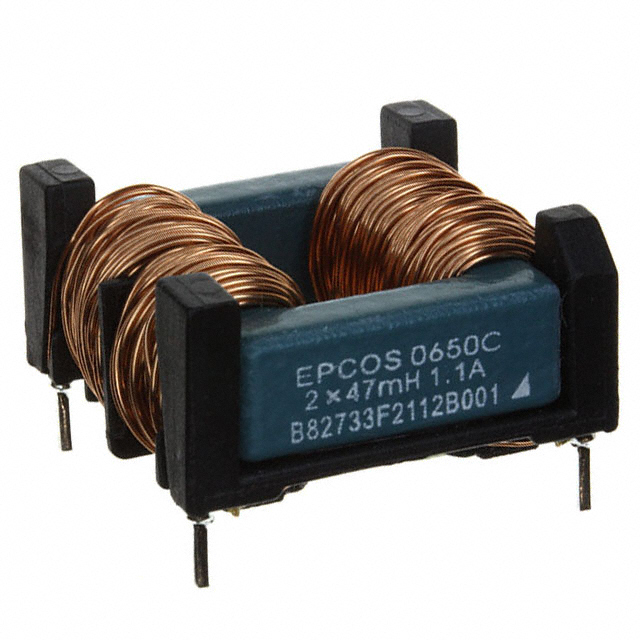

The B82733F2112B001 is a current-compensated frame core double choke from the EPCOS B82733F series. It features a closed magnetic circuit with a ferrite frame construction and PET coil former rated UL94 V-0. The component has a rated voltage of 250 V AC, a rated current of 1.1 A at +40 °C, and a nominal inductance of 47 mH with a tolerance of ±30%. Its maximum DC resistance is 85 Ohms. Physical dimensions are 26.50 mm length and 24.80 mm width.
