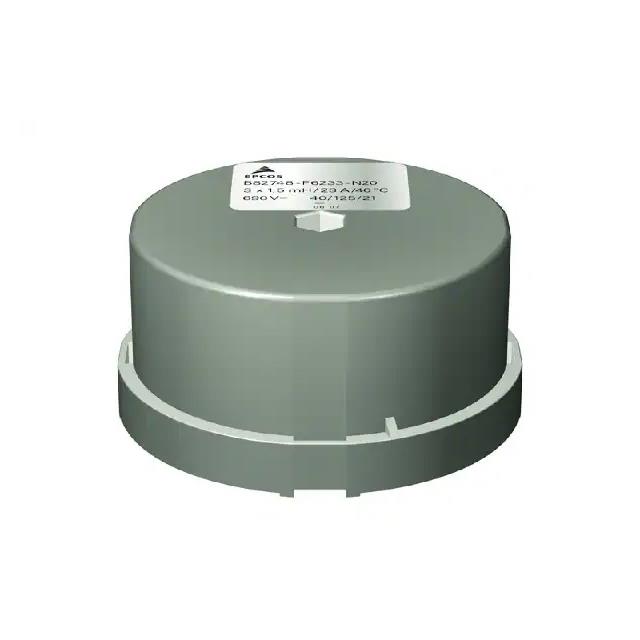

B82748F6233N020

$33.10

Description：CMC 1.5MH 23A 3LN THROUGH HOLE
Series：-
Mfr：EPCOS - TDK Electronics
Package：Tray

SKU:d46291d9ef13 Category: Common Mode Chokes Brand: EPCOS - TDK Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.5MH 23A 3LN THROUGH HOLE
Series：-
Mfr：EPCOS - TDK Electronics
Package：Tray
Filter Type：Power Line
Number of Lines：3
Current Rating (Max)：23A
DC Resistance (DCR) (Max)：4mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：3.071" Dia (78.00mm)
Height (Max)：1.614" (41.00mm)
Package / Case：Horizontal, 6 PC Pin
Inductance @ Frequency：1.5 mH @ 10 kHz
Impedance @ Frequency：-

Download product information

B82748F6233N020

Overview

The B82748F6233N020 is a fixed inductor manufactured by EPCOS - TDK Electronics. It features an inductance of 23 µH with a tolerance of ±15%. The component has a maximum DC resistance of 1.9 Ω and a rated current of 200 mA. It utilizes a ferrite core and is supplied in a tape and reel packaging format.
