B82748S6623N30

Overview

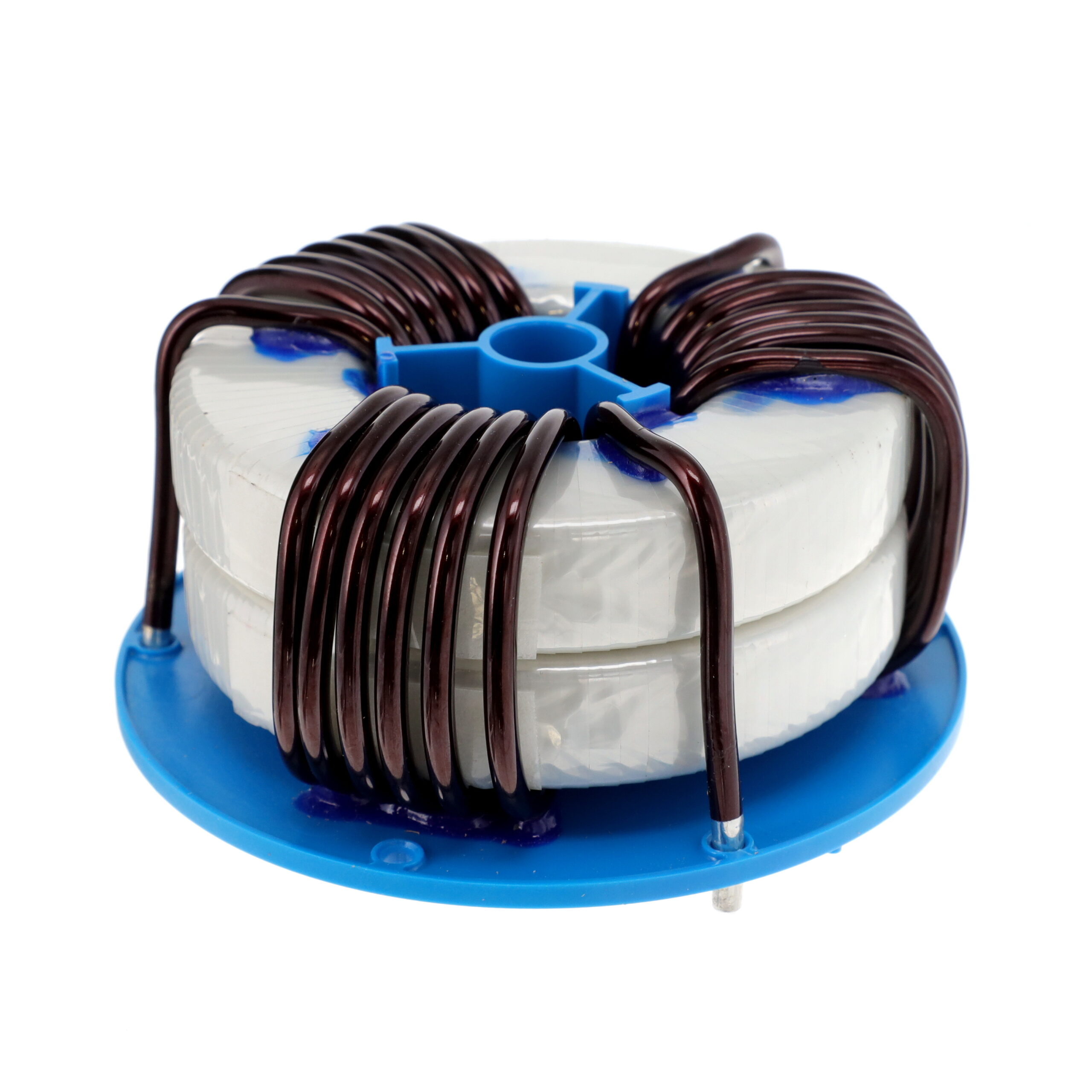

The B82748S6623N30 is a ring core common mode choke manufactured by EPCOS - TDK Electronics. It features an inductance of 1.1 mH measured at a frequency of 10 kHz and supports a maximum current of 62 A. The component utilizes a horizontal mounting style with six PC pins and has a maximum height of 54.00 mm.

Feature Summary

• Provides effective common mode noise suppression for power line applications
• Engineered for high current handling capabilities up to 62 A
• Constructed with a robust ring core design for stable performance

Applications

• Power line filtering
• Industrial electronics systems
• Automotive electronic circuits

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct pin configuration and environmental ratings. Confirm that the selected variant matches the required inductance tolerance and current carrying capacity for the target application circuit before finalizing procurement orders.

Selection Notes

Select this component when designing circuits requiring high current handling alongside common mode interference mitigation. Ensure the physical dimensions, specifically the 98.00 mm diameter and 54.00 mm height, fit within the available enclosure space. Validate that the operating temperature range aligns with the system's thermal environment requirements.

Part Context

This component belongs to the B82748 series of ring core chokes from EPCOS - TDK Electronics. The series is designed for demanding power line applications where high current stability and reliable noise suppression are critical. It represents a standard solution for industrial and automotive power management systems.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify that any substitute part maintains identical inductance values, current ratings, and physical footprint specifications to ensure seamless integration without redesigning the PCB layout.
