B82767S4193N030

Overview

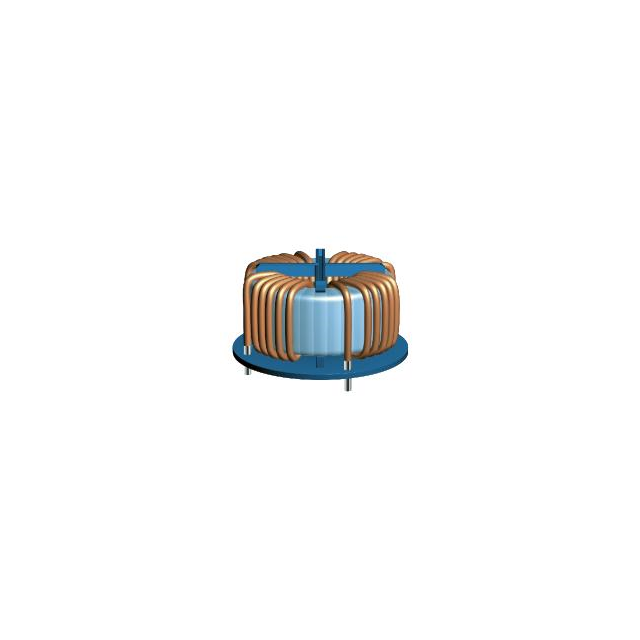

The B82767S4193N030 is a current-compensated ring core choke manufactured by EPCOS (TDK Electronics). It is designed as a quad choke for power line common mode filtering. The component features four lines with an inductance of 1mH per line and supports a current rating of 19A. It has a maximum DC resistance of 1.5mOhm and operates within a temperature range of -40°C to 125°C. The device utilizes through-hole mounting and has maximum dimensions of 60.00mm in length and width.

Feature Summary

• Current-compensated ring core design for effective common mode noise suppression
• Quad choke configuration supporting four independent lines
• High current handling capability suitable for power line applications

Applications

• Power line common mode filtering
• Industrial electronics equipment
• Automotive electronic systems

Procurement Notes

Verify the complete part number including suffix N030 to ensure correct packaging and specifications. Confirm that the required current rating of 19A and inductance values align with the specific circuit design requirements before procurement.

Selection Notes

Select this component when high current capacity and robust common mode rejection are required in power applications. Ensure the through-hole mounting style fits the PCB layout constraints and verify that the operating temperature range meets the environmental conditions of the target application.

Part Context

This component belongs to the EPCOS/TDK ring core choke series, which provides reliable electromagnetic interference filtering solutions. The B82767 series is specifically engineered for demanding power electronics environments where stability and high current performance are critical for system integrity.

Replacement Considerations

Consult official TDK/EPCOS documentation for direct cross-references. Verify pin compatibility and electrical parameters if considering alternative manufacturers or series replacements.
