Product Detailed Parameters
- Description：CMC 5UH 1A 2LN SMD AEC-Q200
- Series：B82790
- Mfr：EPCOS - TDK Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：60mOhm (Typ)
- Voltage Rating - DC：80V
- Voltage Rating - AC：42V
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.280" L x 0.236" W (7.10mm x 6.00mm)
- Height (Max)：0.205" (5.20mm)
- Package / Case：Horizontal, 4 Gull Wing
- Inductance @ Frequency：5 µH @ 100 kHz
- Impedance @ Frequency：-
Download product information
Overview

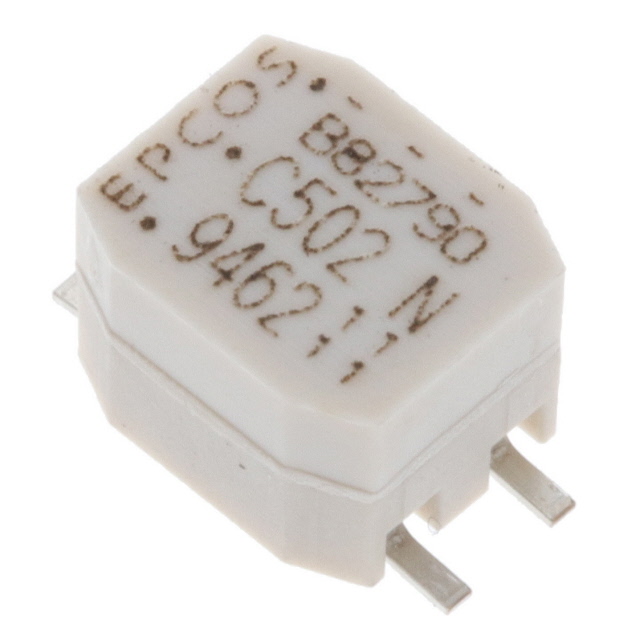

The B82790C0502N201 is a data line choke from the EPCOS B82790C/S series, designed for signal and data lines. It features a rated inductance of 5 µH with a tolerance of -30%/+30%. The component supports a maximum DC current of 1200 mA and has a typical DC resistance of 60 mΩ. It operates within a temperature range of -40°C to +125°C and holds AEC-Q200 automotive ratings. Rated voltages are 42 V AC and 80 V DC.
Feature Summary
- Current-compensated double choke design utilizing a ferrite core
- Encased in UL 94 V-0 rated LCP plastic with silicone potting
- Bifilar winding construction for common-mode filtering
- Automotive-grade reliability compliant with AEC-Q200 standards
Applications
- Automotive data bus protection
- Signal line filtering in electronic control units
- Common-mode noise suppression in vehicle networks
Procurement Notes
Verify the specific ordering suffix against the official EPCOS/TDK datasheet to confirm exact electrical tolerances and packaging specifications. Ensure the component meets the required AEC-Q200 qualification status for your specific application environment. Cross-reference the pinout and mechanical dimensions with the latest package drawing before integration.
Selection Notes
Select this component for applications requiring robust common-mode filtering on data lines with high current demands up to 1200 mA. The bifilar winding and ferrite core provide effective noise suppression while maintaining signal integrity. Consider the -40°C to +125°C operating range for harsh automotive or industrial environments where thermal stability is critical.
Part Context
This part belongs to the B82790C/S series of common-mode chokes manufactured by EPCOS (TDK Electronics). The series offers ring-core inductors ranging from 0.005 mH to 47 mH with rated currents between 100 mA and 1200 mA. These components are specifically engineered for data and signal lines, providing compact solutions for electromagnetic compatibility in modern electronic systems.
Replacement Considerations
Consult the official EPCOS replacement guide for verified cross-references. Ensure any substitute maintains the same inductance value, current rating, and AEC-Q200 certification if automotive compliance is required.
